Review and next steps

⏱ ~10 min

This module is the final verification step: confirm that hub services are healthy, review what you deployed across the stack, and decide how to replicate the pattern in your own environment.

What you deployed

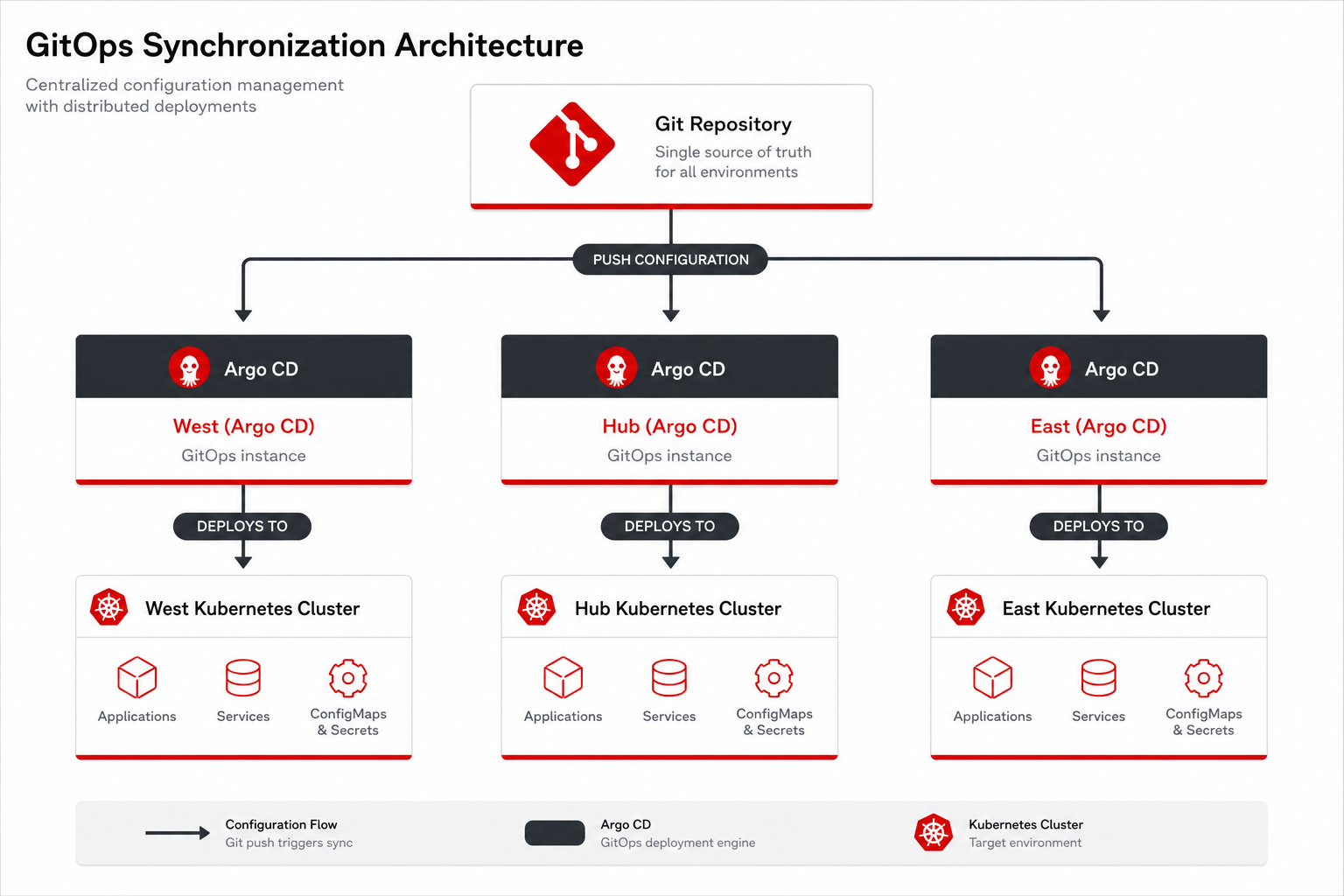

GitOps Synchronization
Layer Component CRD / API

GitOps

ArgoCD Applications

Application

Fleet

RHACM managed clusters

ManagedCluster

Developer

Developer Hub, GitLab

Backstage templates

AI / CV

OpenShift AI, NeuroFace, native MaaS

DataScienceCluster, Tenant, InferenceService

GitOps automation

Argo CD MCP, Lightspeed

Application, MCP endpoint

Networking

Skupper, RHCL Gateway

Connector, Gateway, HTTPRoute

Verify all services

hub-login guest (register first)
echo "=== Console Links Health Check ==="
for svc in \
  "console-openshift-console" \
  "developer-hub" \
  "gitlab" \
  "rhods-dashboard-redhat-ods-applications" \
  "grafana" \
  "vault-vault" \
  "vp-gitops-server-vp-gitops" \
  "showroom-showroom"; do
  CODE=$(curl -sk -o /dev/null -w '%{http_code}' --connect-timeout 3 --max-time 5 "https://${svc}.apps.cluster.example.com/" 2>/dev/null || echo "ERR")
  printf "%-45s %s\n" "$svc" "$CODE"
done
Expected output
=== Console Links Health Check ===
console-openshift-console                     200
developer-hub                                 200
gitlab                                        200
rhods-dashboard-redhat-ods-applications       200
grafana                                       200
vault-vault                                   200
vp-gitops-server-vp-gitops                    200
showroom-showroom                             200

Key design decisions

  • RHCL Gateway API instead of OCP Routes — weighted multi-spoke load balancing

  • Skupper instead of VPN — application-level cross-cluster connectivity

  • Ambient Service Mesh — lower resource overhead on spokes

  • Hub-centralized observability — Kiali, Thanos, OpenTelemetry on hub

Replicate this pattern

  1. Fork https://github.com/maximilianoPizarro/ia-computer-vision

  2. Configure values-secret.yaml and install spokes before hub

  3. Adjust values-*.yaml for your domains and sizing

# values-hub.yaml — managedClusterGroups (excerpt)
managedClusterGroups:
  east:
    name: east
    acmlabels:
      - name: clusterGroup
        value: east
  west:
    name: west
    acmlabels:
      - name: clusterGroup
        value: west

Pattern CR

# pattern.yaml — Pattern CR for operator-driven install
apiVersion: gitops.hybrid-cloud-patterns.io/v1alpha1
kind: Pattern
metadata:
  name: ia-computer-vision
  namespace: openshift-operators
spec:
  clusterGroupName: hub
  gitSpec:
    targetRepo: https://github.com/maximilianoPizarro/ia-computer-vision.git
    targetRevision: main
  multiSourceConfig:
    enabled: true
    clusterGroupChartVersion: "0.9.*"
    helmRepoUrl: https://charts.validatedpatterns.io
  extraParameters:
    - name: spokeCredentials.mode
      value: inline
    - name: spokeCredentials.clusters.east.token
      value: "<token>"
    - name: spokeCredentials.clusters.east.apiUrl
      value: "https://api.%EAST_DOMAIN%:6443"
    - name: spokeCredentials.clusters.west.token
      value: "<token>"
    - name: spokeCredentials.clusters.west.apiUrl
      value: "https://api.%WEST_DOMAIN%:6443"

Documentation

Helper commands

hub-login guest (register first)
neuroface-cv-status guest (register first)
neuroface-cv-traffic
neuroface-spoke-status guest (register first)

What you learned

  • You deployed and verified a multi-cluster AI Computer Vision pattern end to end

  • Hub services, GitOps applications, and spoke workloads are reachable with workshop helper commands

  • The pattern can be forked and adapted using values-*.yaml and the Validated Patterns operator

Next

Optional reference: continue with Module 08 — CRD reference for a read-only map of Kubernetes custom resources used in this pattern.

Congratulations — you completed the AI Computer Vision workshop!
