AI Gateway API key and curl inference

⏱ ~10 min

NeuroFace chat, Lightspeed, and scaffolded apps reach LLMs through the AI Gateway (Kuadrant, legacy) on the hub — not the external MaaS endpoint directly. Obtain a Kuadrant API key and test inference with curl. For the recommended Native MaaS path, see Module 09.

AI Gateway configuration

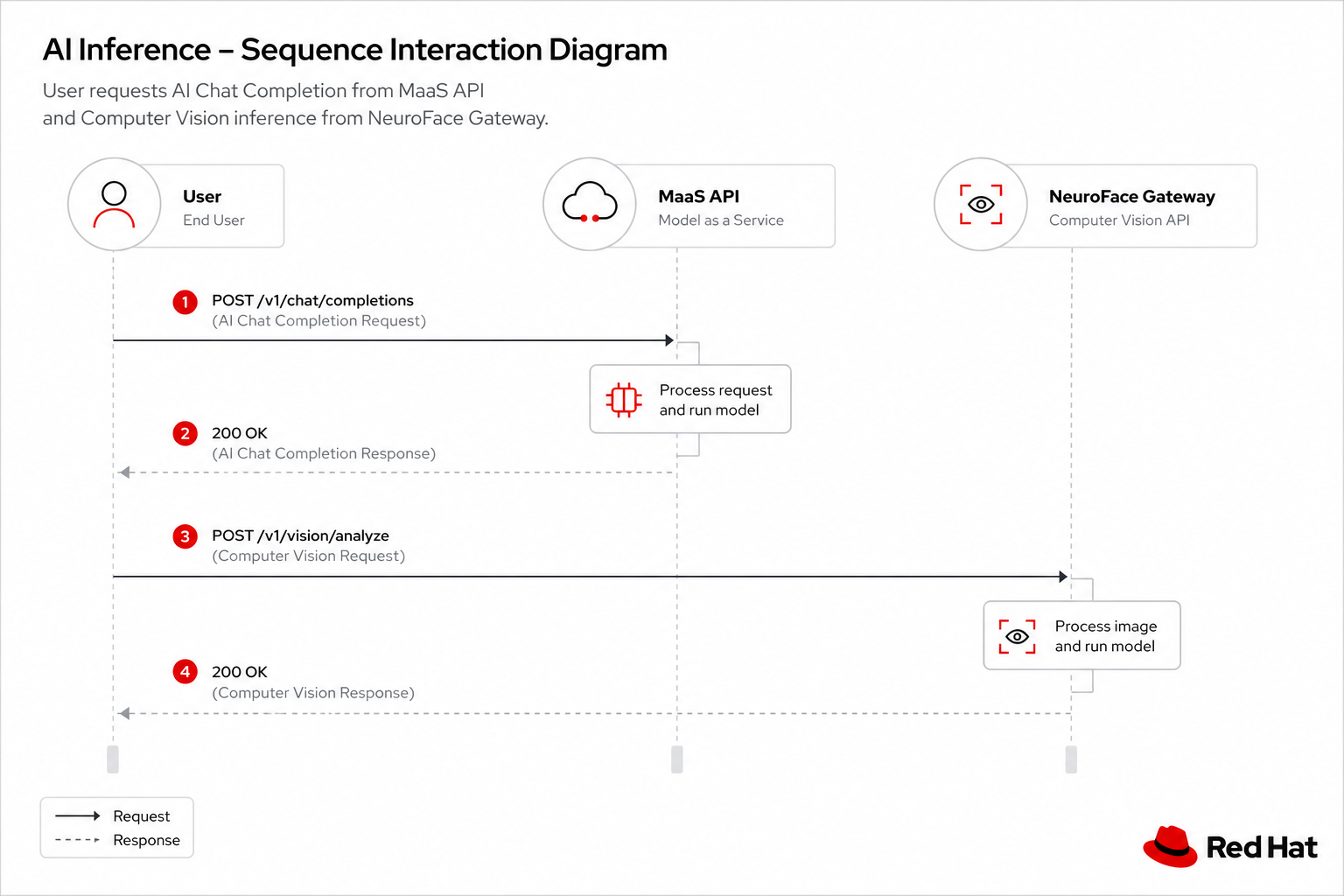

MaaS Inference Flow
# charts/all/developer-hub/files/software-templates/ai-computer-vision.yaml (excerpt)
maasEndpoint:
  default: https://ai-gateway.apps.__HUB_CLUSTER_DOMAIN__/v1

Platform services (Lightspeed, NeuroFace scaffold) use an auto-generated platform API key from Vault (ai-gateway-platform-keys). Workshop users request their own key through Developer Hub.

Obtain your API key

  1. Open https://developer-hub.apps.cluster.example.com/

  2. Log in with guest (register first) / Welcome123!

  3. Catalog → System workshop-kuadrant-apis → API MaaS LLM (ai-gateway)

  4. Kuadrant tab → Request API key → copy the key

Do not share your API key. Treat it like a password — anyone with the key can consume your rate-limit quota on the shared gateway.
The gateway hostname is https://ai-gateway.apps.cluster.example.com/v1/chat/completions.

Test chat completion with curl

export API_KEY="<your-kuadrant-api-key>"
curl -sk -H "Authorization: APIKEY ${API_KEY}" \
  -H "Content-Type: application/json" \
  -d '{"model":"llama-scout-17b","messages":[{"role":"user","content":"Explain PPE detection in one sentence"}]}' \
  "https://ai-gateway.apps.cluster.example.com/v1/chat/completions" | head -c 500
echo
Expected output (truncated)
{
  "id": "chatcmpl-xxx",
  "object": "chat.completion",
  "choices": [{
    "message": {
      "role": "assistant",
      "content": "PPE detection uses computer vision..."
    }
  }]
}

List available models

curl -sk -H "Authorization: APIKEY ${API_KEY}" \
  "https://ai-gateway.apps.cluster.example.com/v1/models" | python3 -m json.tool 2>/dev/null | head -20

Alternative: OIDC instead of an API key

The ai-maas HTTPRoute accepts either credential — pick whichever is convenient. This is dual auth on a single route (hostname ai-gateway.apps.cluster.example.com):

Token requests use https://sso.apps.cluster.example.com/realms/maas as the OIDC issuer URL in policies. Use https://keycloak.apps.cluster.example.com/ for admin consoles — see Module 01 — Terminology.
hub-login guest (register first)
export CLIENT_ID="client-maas-guest (register first)"
export CLIENT_SECRET=$(oc get secret keycloak-client-maas-guest (register first) -n keycloak-system \
  -o jsonpath='{.data.clientSecret}' 2>/dev/null | base64 -d)
TOKEN=$(curl -sk -X POST "https://sso.apps.cluster.example.com/realms/maas/protocol/openid-connect/token" \
  -d "grant_type=client_credentials&client_id=${CLIENT_ID}&client_secret=${CLIENT_SECRET}" \
  | python3 -c "import sys,json; print(json.load(sys.stdin).get('access_token',''))")
curl -sk -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json" \
  -d '{"model":"llama-scout-17b","messages":[{"role":"user","content":"Hello"}]}' \
  "https://ai-gateway.apps.cluster.example.com/v1/chat/completions" | head -c 300
echo

In Developer Hub’s Swagger UI (Catalog → MaaS OpenAPI → Definition tab), the Authorize dialog offers both ApiKeyAuth and OAuth2ClientCredentials — either one works on the same endpoint. API-key calls land on the free/gold rate-limit tier; OIDC calls land on a separate oidc tier.

Contrast: direct MaaS (optional)

The hub OpenShift AI dashboard may still show the upstream MaaS endpoint for reference:

https://maas-rhdp.apps.maas.redhatworkshops.io/v1

Workshop apps in this pattern are wired to AI Gateway so Kuadrant can enforce APIKEY auth and rate limits. Do not embed upstream MaaS keys in scaffolded repos.

Test NeuroFace gateway

curl -sk -o /dev/null -w "NeuroFace gateway: HTTP %{http_code}\n" \
  "https://neuroface.apps.cluster.example.com/user/guest (register first)/"
Expected output
NeuroFace gateway: HTTP 200

What you learned

  • All MaaS traffic from workshop apps flows through AI Gateway on the hub

  • User API keys are issued via Developer Hub Kuadrant integration

  • Platform keys (ai-gateway-platform-keys) are auto-generated in Vault at install time

  • The ai-maas route accepts an API key or a realm-maas OIDC token on the same endpoint (dual auth)

Next

Continue with Module 09 — Native Models as a Service in OpenShift AI.
