Architecture Overview
This module presents the side-by-side architecture of the migration environment. Both 3scale and Connectivity Link run on the same OpenShift cluster, enabling direct comparison.

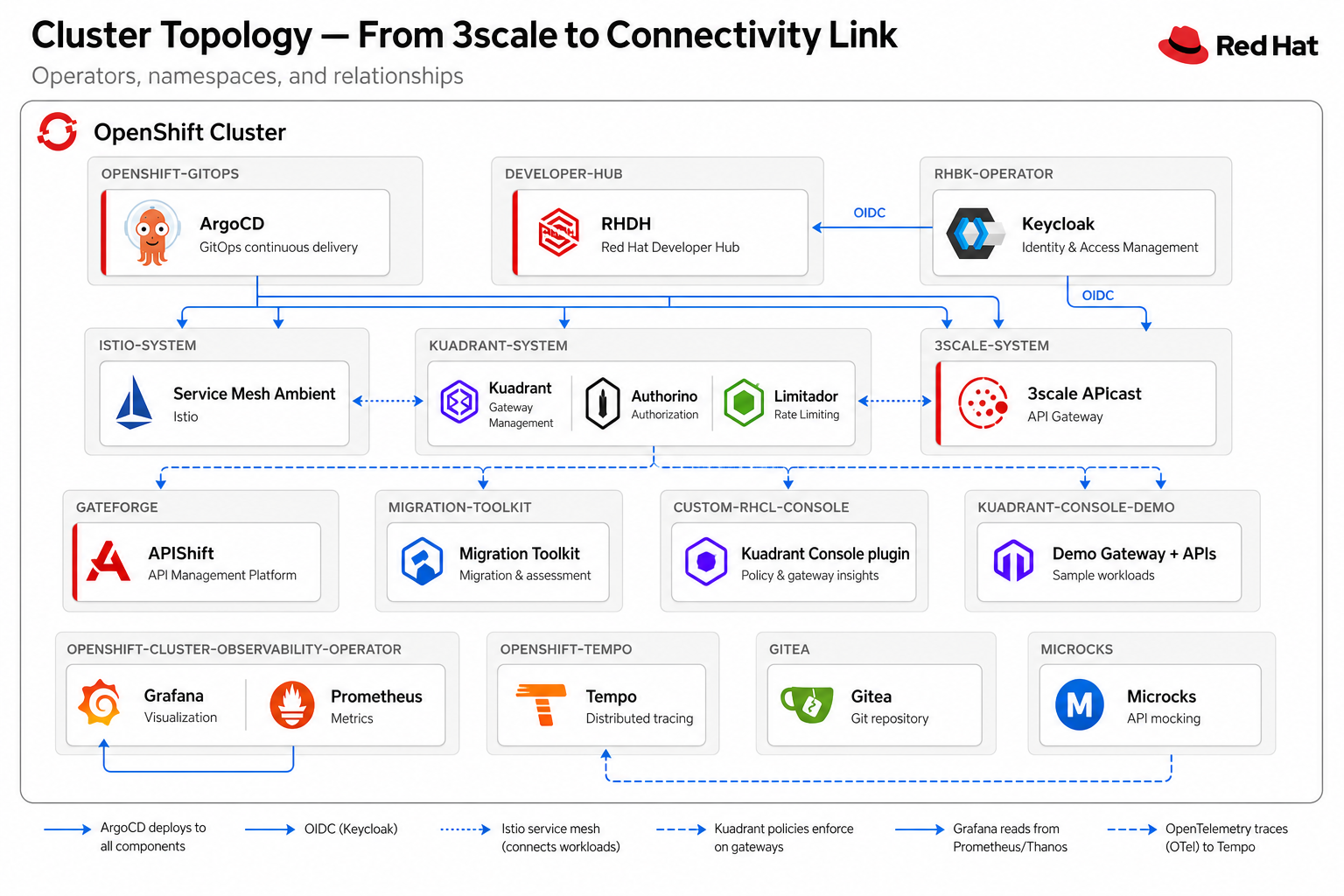

Cluster layout
┌──────────────────────────────────────────────────────────────────────┐ │ OpenShift Cluster │ │ │ │ ┌─────────────────────────┐ ┌─────────────────────────┐ │ │ │ 3scale (Source) │ │ Connectivity Link │ │ │ │ │ │ (Target) │ │ │ │ ┌───────────────────┐ │ │ ┌───────────────────┐ │ │ │ │ │ neuralbank-3scale │ │ │ │ neuralbank-stack │ │ │ │ │ │ OIDC via Product │ │ │ │ OIDC via OIDCPolicy│ │ │ │ │ │ APIcast → Backend │ │ │ │ Gateway → Backend │ │ │ │ │ └───────────────────┘ │ │ └───────────────────┘ │ │ │ │ │ │ │ │ │ │ ┌───────────────────┐ │ │ ┌───────────────────┐ │ │ │ │ │ nfl-wallet-3scale │ │ │ │ nfl-wallet-prod │ │ │ │ │ │ API Key via Prod │ │ │ │ API Key via AuthPol│ │ │ │ │ │ APIcast → Backend │ │ │ │ Gateway → Backend │ │ │ │ │ └───────────────────┘ │ │ └───────────────────┘ │ │ │ │ │ │ │ │ │ │ 3scale Operator │ │ Kuadrant Operator │ │ │ │ APIManager │ │ Istio / Service Mesh │ │ │ └─────────────────────────┘ └─────────────────────────┘ │ │ │ │ ┌──────────────────────────────────────────────────────────┐ │ │ │ Developer Hub (Backstage) │ │ │ │ ┌─────────────────────────────────────────────────────┐ │ │ │ │ │ Migration Software Template │ │ │ │ │ │ (generates Gateway + HTTPRoute + AuthPolicy + ...) │ │ │ │ │ └─────────────────────────────────────────────────────┘ │ │ │ │ │ │ │ │ Keycloak · Gitea · ArgoCD · Tekton · Grafana · Kiali │ │ │ └──────────────────────────────────────────────────────────┘ │ └──────────────────────────────────────────────────────────────────────┘
Platform components
| Component | Role |
|---|---|
Developer Hub |
Self-service portal: software catalog, templates, documentation, Kuadrant plugin, notifications. |
Keycloak |
Identity provider and SSO. Manages OIDC realms for both 3scale and Connectivity Link. |
Gitea |
Internal Git server. Stores application code and Kubernetes manifests. |
ArgoCD |
GitOps engine. Syncs manifests from Git to the cluster continuously. |
3scale Operator |
Manages the 3scale APIManager, Products, Backends, and Application Plans via CRDs. |
Kuadrant Operator |
Manages Connectivity Link policies: AuthPolicy, OIDCPolicy, RateLimitPolicy, PlanPolicy, APIProduct. |
Istio / Service Mesh |
Data plane for Gateway API. Provides Envoy-based traffic management integrated with Kuadrant. |
Grafana / Kiali |
Observability stack: dashboards (Grafana), service mesh topology (Kiali). |
Request flow comparison
3scale flow (APIcast)
Client → OpenShift Route → APIcast → [auth check + rate limit] → Backend Service
APIcast validates credentials against the 3scale backend (Redis). MappingRules determine which metric to increment. Application Plans enforce rate limits.

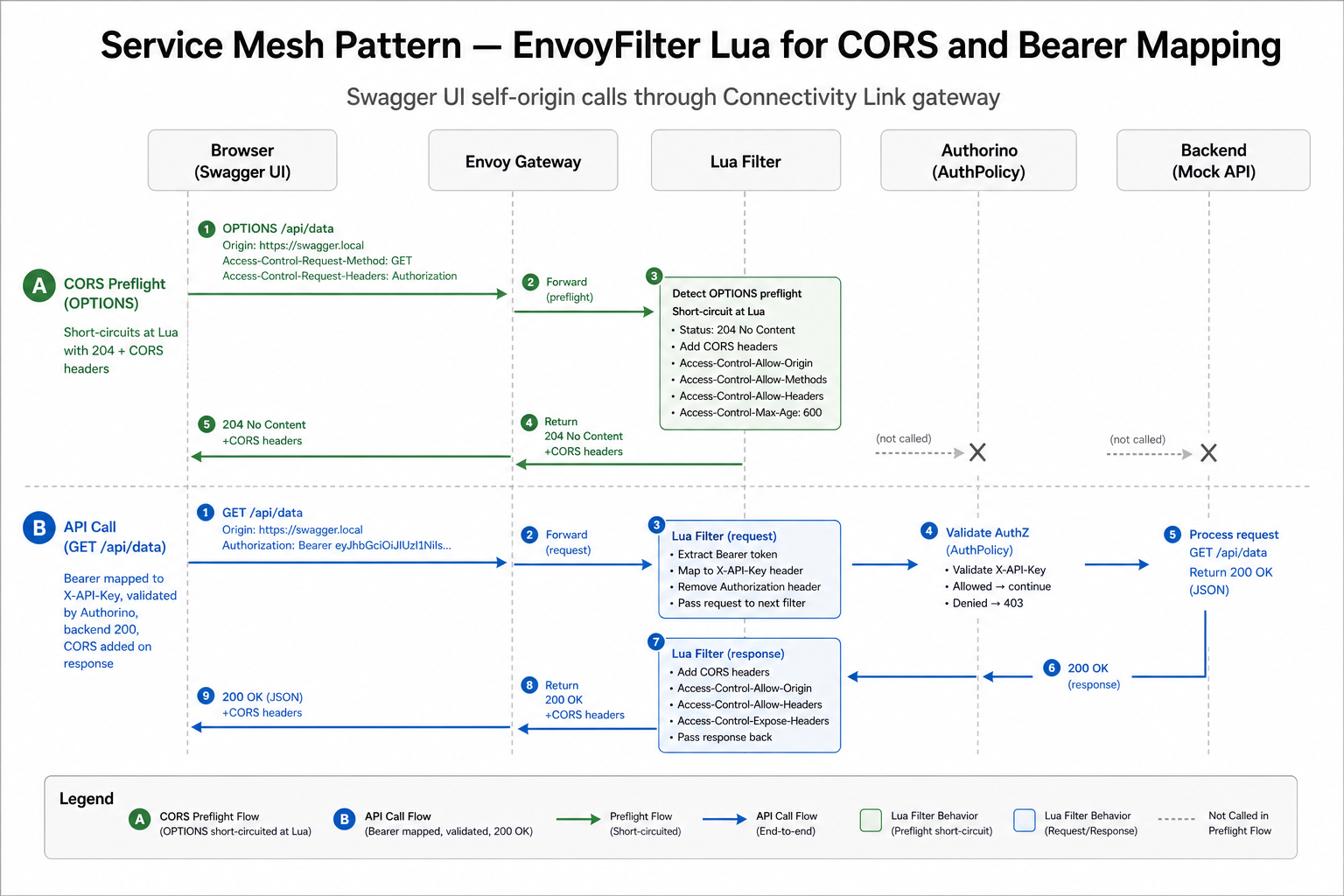

Connectivity Link flow (Kuadrant)
Client → OpenShift Route → Istio Gateway → [Authorino auth + Limitador rate limit] → Backend Service
↑
HTTPRoute + AuthPolicy + RateLimitPolicy
The Istio Gateway delegates authentication to Authorino and rate limiting to Limitador. Policies are attached directly to the Gateway or HTTPRoute as Kubernetes CRDs.
