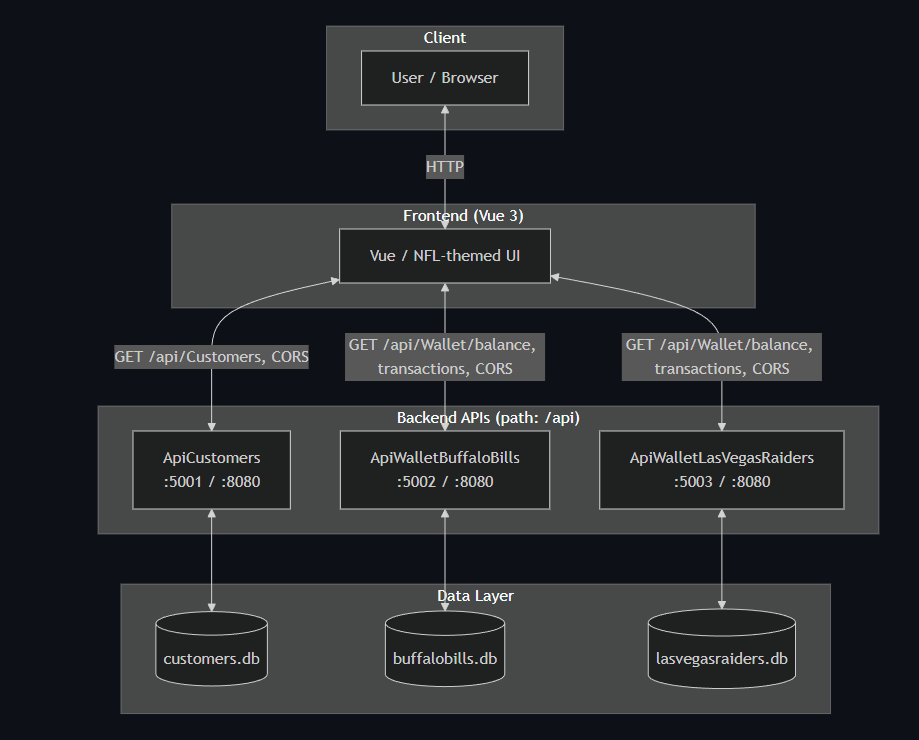

Architecture Overview
The solution is built in three layers:
| Layer | Technology | Description |
|---|---|---|
| Frontend | Vue 3, Vite, vue-router | SPA served by Apache (UBI8 httpd-24). |
| APIs | .NET 8.0, ASP.NET Core | Three services: ApiCustomers, ApiWalletBuffaloBills, ApiWalletLasVegasRaiders. Path base /api, Swagger at /api/swagger. |
| Data | SQLite | One database per API: customers.db, buffalobills.db, lasvegasraiders.db. |
The frontend calls the Customers API for the customer list and details, and the two Wallet APIs for balance and transactions per team. All APIs support CORS for the frontend origin.
Running With Podman Compose
You can run the full stack locally with Podman Compose. The podman-compose.yml at the repo root defines four services:
- api-customers — Customers API (port 5001)
- api-buffalo-bills — Buffalo Bills wallet API (port 5002)
- api-las-vegas-raiders — Las Vegas Raiders wallet API (port 5003)
- webapp — Vue frontend (port 5160)
Commands:
# From the repo root
podman-compose up -d --build
# Open the app
# http://localhost:5160
The webapp is built with build args so it points to http://localhost:5001/api, http://localhost:5002/api, and http://localhost:5003/api for the three APIs. Data is persisted in named volumes.

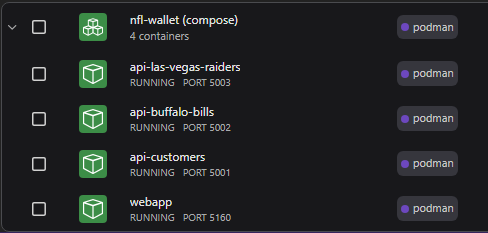

Running the stack with Podman Compose. Click to enlarge.
Running With Red Hat OpenShift Dev Spaces
The repo includes a devfile.yaml for Red Hat OpenShift Dev Spaces (and compatible CodeReady Workspaces). You can open the project in a browser-based IDE and run the full stack there.
- Components: One container for the APIs (UBI8 .NET 8.0) and one for the webapp (UBI8 Node.js 20). The devfile defines build and run steps.
- Endpoints: The APIs are exposed as public endpoints (e.g. api-customers, api-bills, api-raiders). The frontend is served and can call these APIs using the workspace URLs.
- Flow: Clone the repo into a Dev Spaces workspace, run the build step, then the run step; open the frontend URL and use the app as in the architecture diagram.
This allows developing and testing the centralized wallet in a cloud IDE without installing .NET or Node locally.

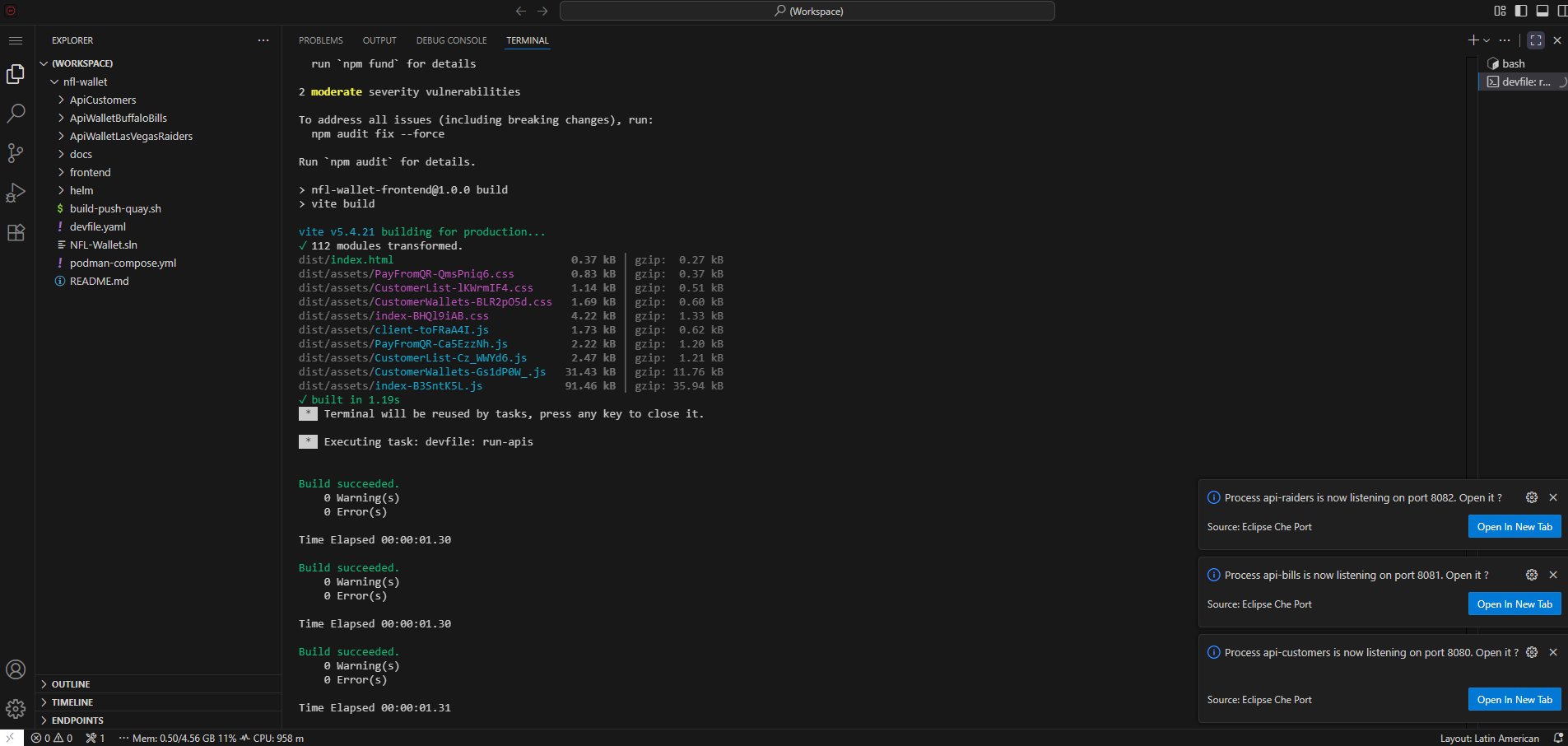

Dev Spaces workspace. Click to enlarge.
Build and run in Dev Spaces.
App running from Dev Spaces.
