Stadium Wallet GitOps

GitOps for Stadium Wallet on OpenShift — Argo CD and optional Red Hat Advanced Cluster Management (ACM) for east/west multi-cluster deployment.

Purpose

This repository provides:

Declarative deployment of the Stadium Wallet stack (Vue webapp + Customers, Bills, Raiders APIs) via Git and Argo CD.
Multi-cluster options: with ACM, one ApplicationSet and Placements generate six Applications (dev/test/prod × east/west); without ACM, separate ApplicationSets for east and west.
Gateway and security: Routes, Kuadrant AuthPolicy and RateLimitPolicy, defined in Kustomize overlays.

Deployment uses Kustomize (not Helm). Overlays in nfl-wallet/ deploy Routes, AuthPolicy, API keys, and namespace-mesh. The application (Gateway, webapp, backends) is deployed separately with the Stadium Wallet chart.

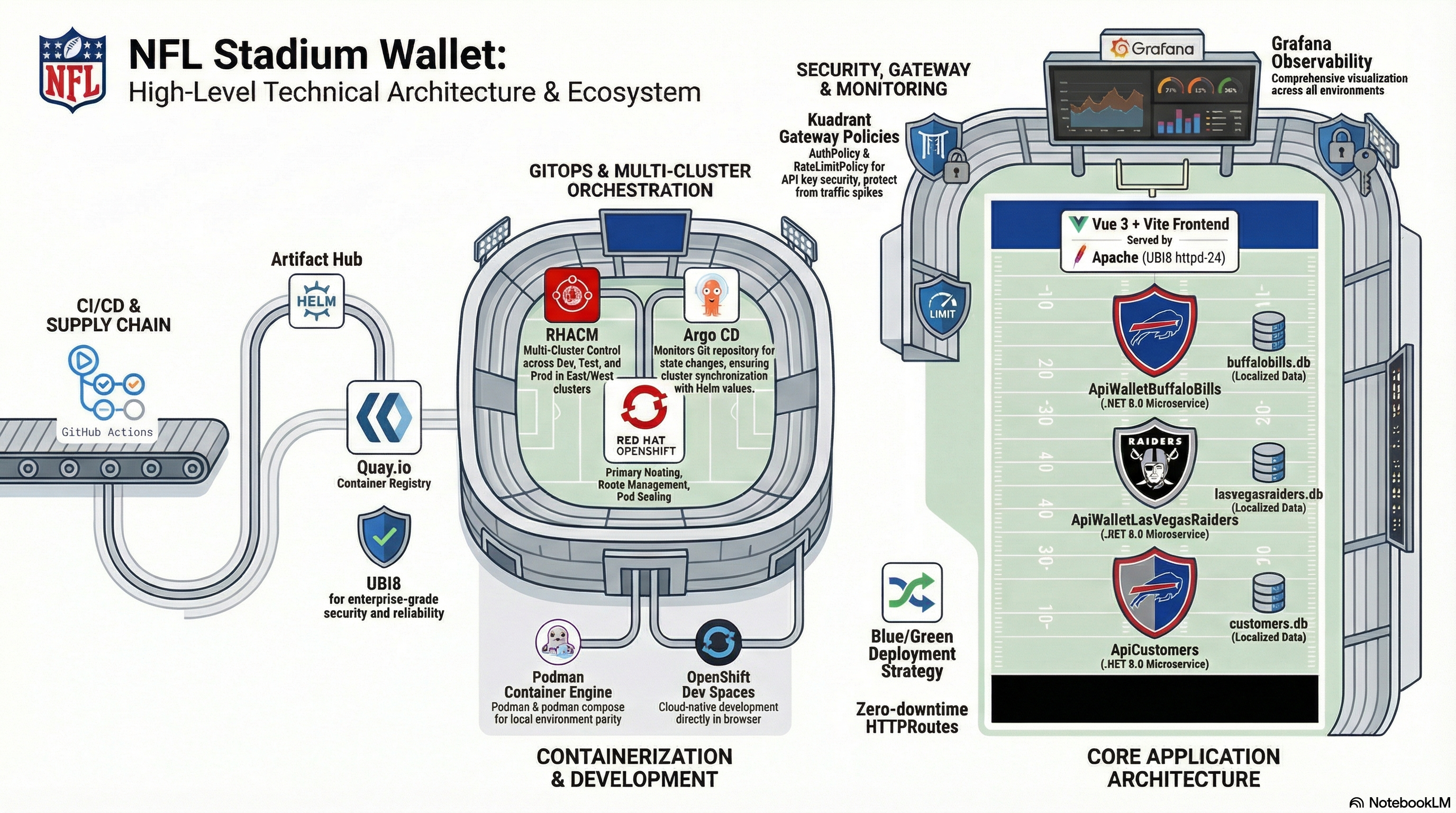

Architecture workflow

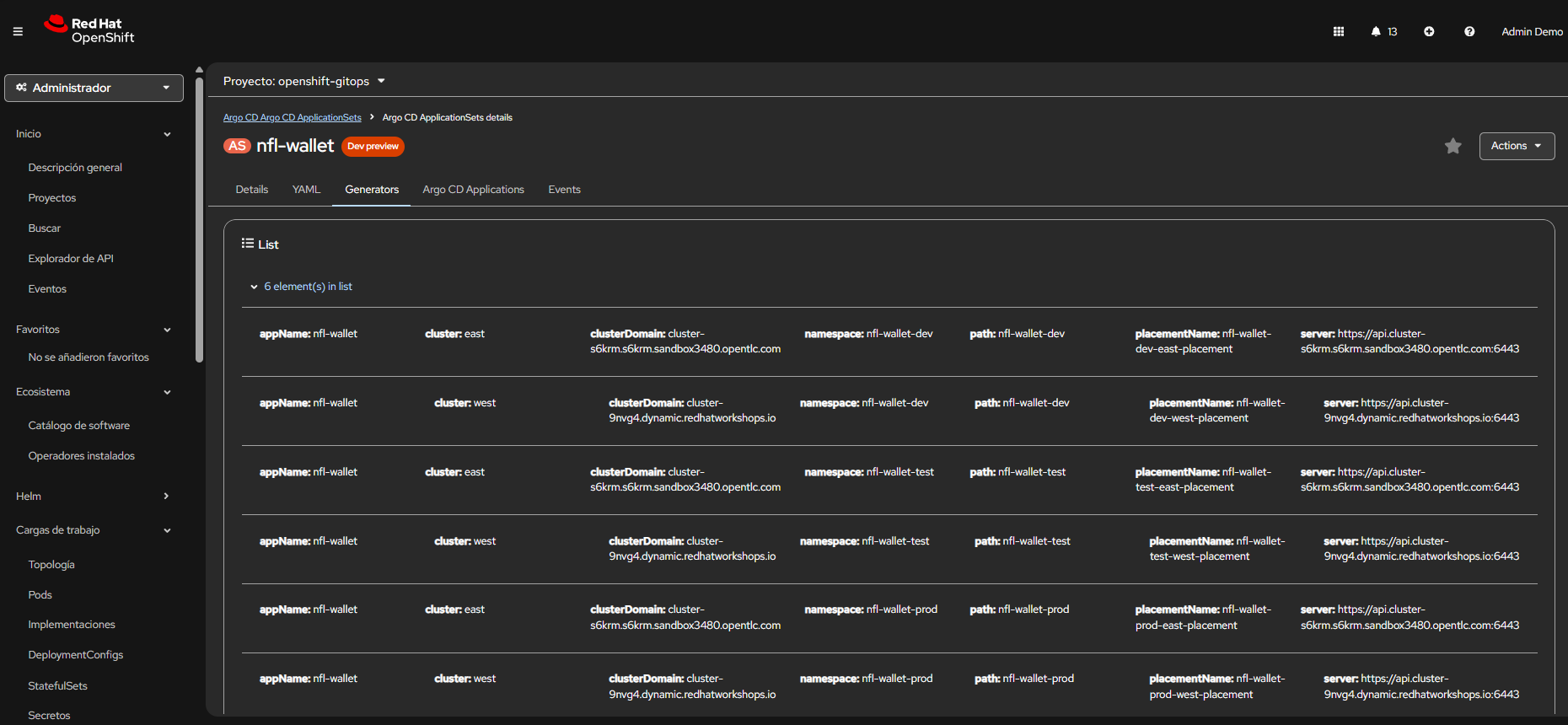

OpenShift GitOps

OpenShift GitOps (Argo CD) — Applications and sync status. See Deploy with ACM.

Available options

Option	Description
Deploy with ACM	Apply `app-nfl-wallet-acm.yaml` + `app-nfl-wallet-acm-cluster-decision.yaml` + `app-kuadrant-resources.yaml` on the hub; GitOpsCluster and ApplicationSet create six Applications + two kuadrant-resources Applications. See ARGO-ACM-DEPLOY and Getting started — 4b.
Deploy without ACM	Use `app-nfl-wallet-east.yaml` and `app-nfl-wallet-west.yaml`; no cluster set or Placements required. See Getting started — 4a.
Biometric Login	RHBK + NeuroFace biometric authentication (chart 0.1.3) in dev and test. FHD camera (1920×1080). See Gateway policies.
OIDC Policy	JWT validation for wallet APIs in test via chart OIDC policy objects. See Gateway policies.
API Reference	Customers, Bills, Raiders APIs — hosts, paths, and API keys per environment. See API.
Gateway Policies	AuthPolicy (API key), RateLimitPolicy, OIDC policy — location in Kustomize overlays and chart. See Gateway policies.
Observability	Grafana Operator, ServiceMonitors, test scripts. See Observability.
QA Test Plan	Automated end-to-end tests (10 cases). Run `qa-test-plan.sh` authenticated to the hub with east/west env vars. See QA Test Plan.
Canary (prod)	Test chart 0.1.3 with biometric login via canary URLs before promoting to prod. See Gateway policies.

Quick links

Architecture — Placements, ApplicationSets, multi-cluster (ACM and standalone).
Getting started — Prerequisites and deployment steps (east/west and ACM).
ARGO-ACM-DEPLOY — ACM logic and application order.
Deploy with ACM — ACM topology and Applications (screenshots).
API — Endpoints and hosts.
Gateway policies — AuthPolicy, RateLimitPolicy.
Observability — Metrics, Grafana, test scripts.
QA Test Plan — Automated end-to-end test suite (qa-test-plan.sh): GitOps sync, mesh, auth, rate limiting, cross-cluster, observability.
Stadium Wallet (chart) — Chart documentation.
Repository README

Environments and namespaces

Environment	Namespace	Chart version	Biometric login	OIDC policy
Dev	`nfl-wallet-dev`	0.1.3	RHBK + NeuroFace (FHD)	Disabled
Test	`nfl-wallet-test`	0.1.3	RHBK + NeuroFace (FHD)	Enabled
Prod	`nfl-wallet-prod`	0.1.1	—	—

Repository structure

.
├── app-nfl-wallet-acm.yaml              # Placements + GitOpsCluster (ACM)
├── app-nfl-wallet-acm-cluster-decision.yaml  # ApplicationSet (list generator)
├── app-kuadrant-resources.yaml          # Kuadrant resource patches (east + west)
├── app-nfl-wallet-east.yaml             # ApplicationSet east (no ACM)
├── app-nfl-wallet-west.yaml             # ApplicationSet west (no ACM)
├── argocd-placement-configmap.yaml      # ConfigMap acm-placement
├── argocd-applicationset-rbac-placement.yaml
├── kuadrant.yaml                        # Kuadrant CR
├── kuadrant-system/                     # Authorino, Limitador, Gateway resources
├── nfl-wallet/                          # Kustomize (routes, AuthPolicy, API keys)
│   ├── base/                            # gateway route
│   ├── base-canary/                     # canary route (prod)
│   └── overlays/                        # dev, test, prod + dev-east, dev-west, etc.
├── nfl-wallet-observability/            # Grafana + ServiceMonitors
├── observability/                       # Grafana Operator base
├── docs/                                # This documentation
└── scripts/                             # force-sync-apps, test-apis, etc.
