AMQ Streams

Git path: charts/all/industrial-edge-*/ (Kafka clusters per environment)

Red Hat AMQ Streams is the enterprise distribution of Apache Kafka on OpenShift, including operators for Kafka, KRaft mode, Kafka Connect, and MirrorMaker 2 for geo replication.

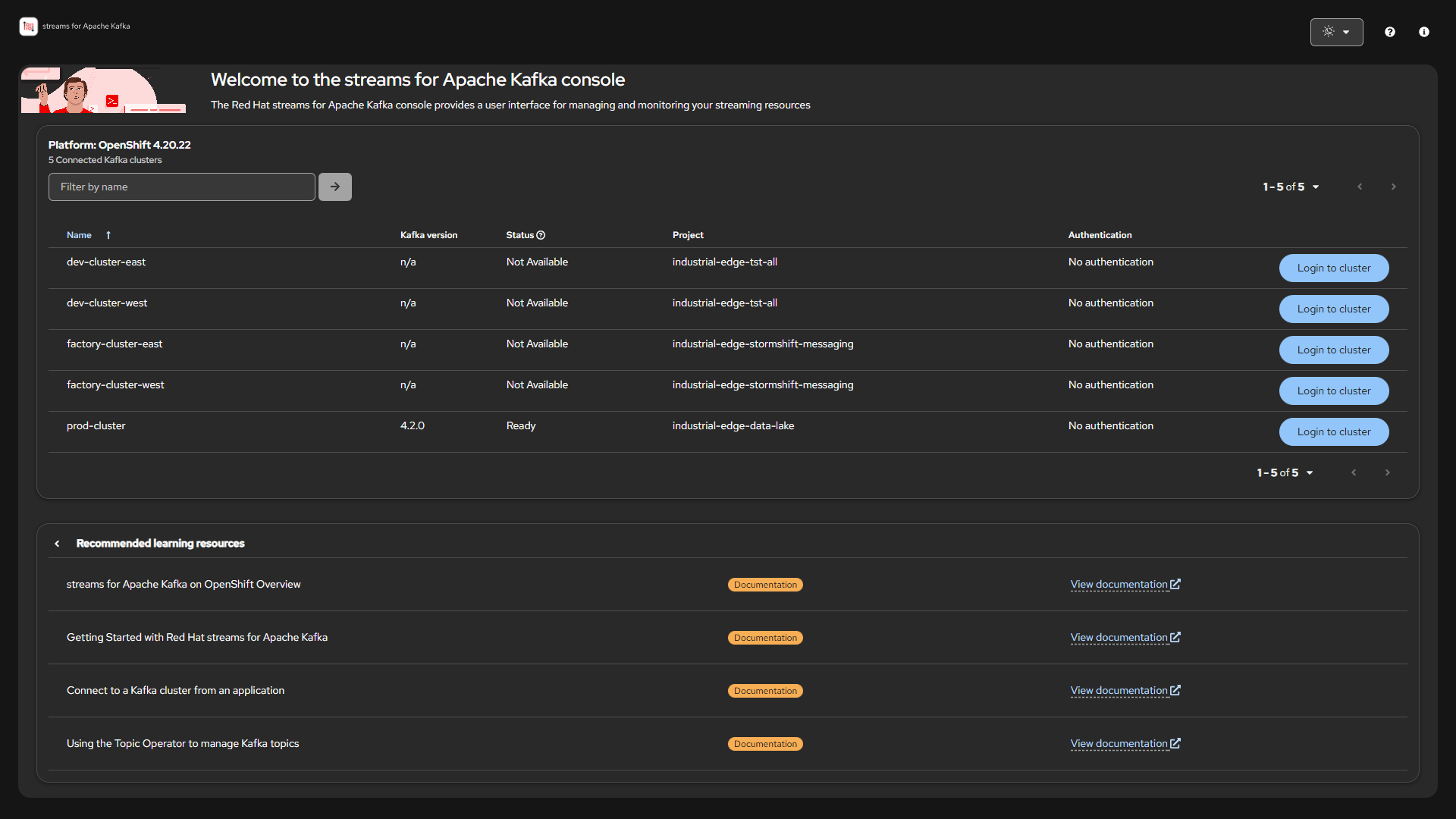

Kafka Console – 5 clusters connected

Streams for Apache Kafka Console showing all connected clusters (hub + east/west spokes).

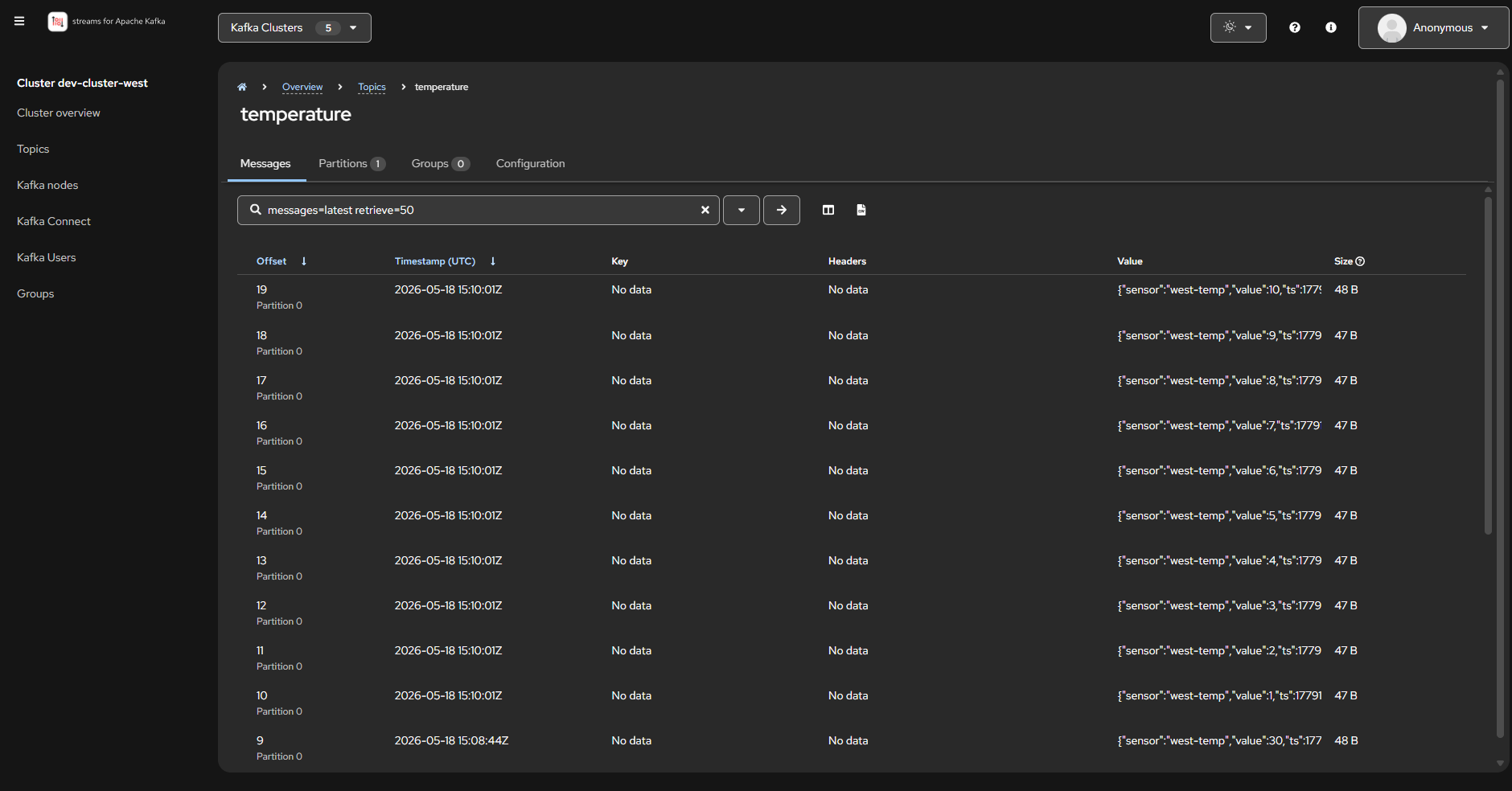

Kafka Console – Topic messages

Topic browser — temperature messages on dev-cluster-west via Skupper.

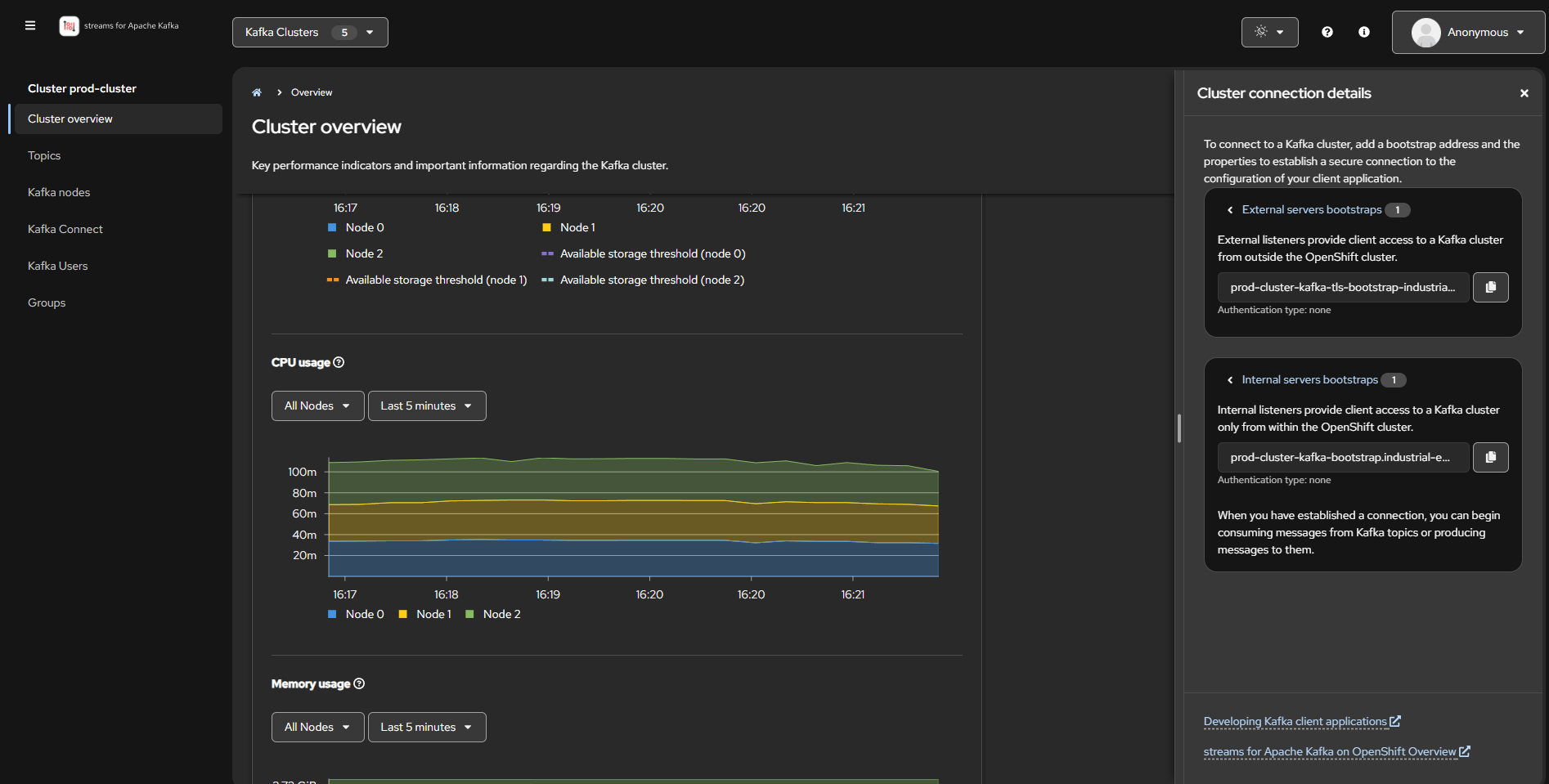

Kafka Console – Cluster detail

Kafka Console — cluster detail view with broker metrics and consumer group lag.

Industrial Edge usage

  • Sensor and MQTT-derived topics land in Kafka via integrations (often Camel K).
  • KRaft mode (Kafka 4.x) with KafkaNodePool — no ZooKeeper.
  • East and west spokes each run dev-cluster (industrial-edge-tst-all) and factory-cluster (industrial-edge-stormshift-messaging).
  • Topics partition workload between east and west factories while observability aggregates lag and throughput metrics.

Charts: charts/all/industrial-edge-tst, charts/all/industrial-edge-stormshift, charts/all/industrial-edge-data-lake.

Operator discovery

Strimzi Cluster Operator watches Kafka, KafkaNodePool, KafkaTopic, … wherever CRDs land — namespaces (industrial-edge-tst-all, industrial-edge-stormshift-messaging, industrial-edge-data-lake) simply host those manifests.

The hub Kafka Console ships via Console CR (console.streamshub.github.com/v1alpha1 in charts/all/kafka-console/templates/all.yaml) with spec.kafkaClusters[] entries naming namespaces plus bootstrap URLs — discovery is explicit GitOps, not an annotation on random Deployments. Remote clusters still require metricsSources entries when Prometheus differs per spoke.

Metrics (Grafana)

Kafka brokers expose JMX metrics via Strimzi’s jmxPrometheusExporter ConfigMap. Scraping requires:

  • User Workload Monitoring enabled on the cluster
  • PodMonitor in charts/all/istio-monitoring selecting strimzi.io/name: <cluster>-kafka

Dashboard queries use _objectname regex filters for Kafka 4.x KRaft JMX layout (for example kafka_server_brokertopicmetrics_* with .*OneMinuteRate.*).

Kafka Console (hub)

The Streams for Apache Kafka Console (amq-streams-console operator) runs on the hub only (charts/all/kafka-console). It lists four remote clusters:

Console name Skupper bootstrap (hub)
dev-cluster-east kafka-east-tst.service-interconnect.svc:9092
dev-cluster-west kafka-west-tst.service-interconnect.svc:9092
factory-cluster-east kafka-east-stormshift.service-interconnect.svc:9092
factory-cluster-west kafka-west-stormshift.service-interconnect.svc:9092

OpenShift Console link: Kafka Console (All Clusters) → https://kafka-console.<hub-domain>.

Broker advertised addresses

Brokers must advertise hostnames resolvable on the hub after metadata exchange. The platform uses:

  • Spoke advertisedHost: dev-cluster-broker-0-<east|west>.dev-cluster-kafka-brokers.industrial-edge-tst-all.svc.cluster.local
  • Hub broker-dns.yaml: EndpointSlice (not Endpoints — Argo CD excludes Endpoints) pointing each advertisedHost to the correct Skupper listener IP

Without this, the UI shows: Timed out waiting for a node assignment / listNodes.

Documentation

Related: Service Interconnect, Observability.
