OpenShift Service Mesh 3

Git path: charts/all/servicemeshoperator3/

Red Hat OpenShift Service Mesh 3 (OSSM3) provides ambient mesh on OpenShift: a per-node ztunnel for L4 mTLS and telemetry, plus optional waypoint proxies for L7 policy.

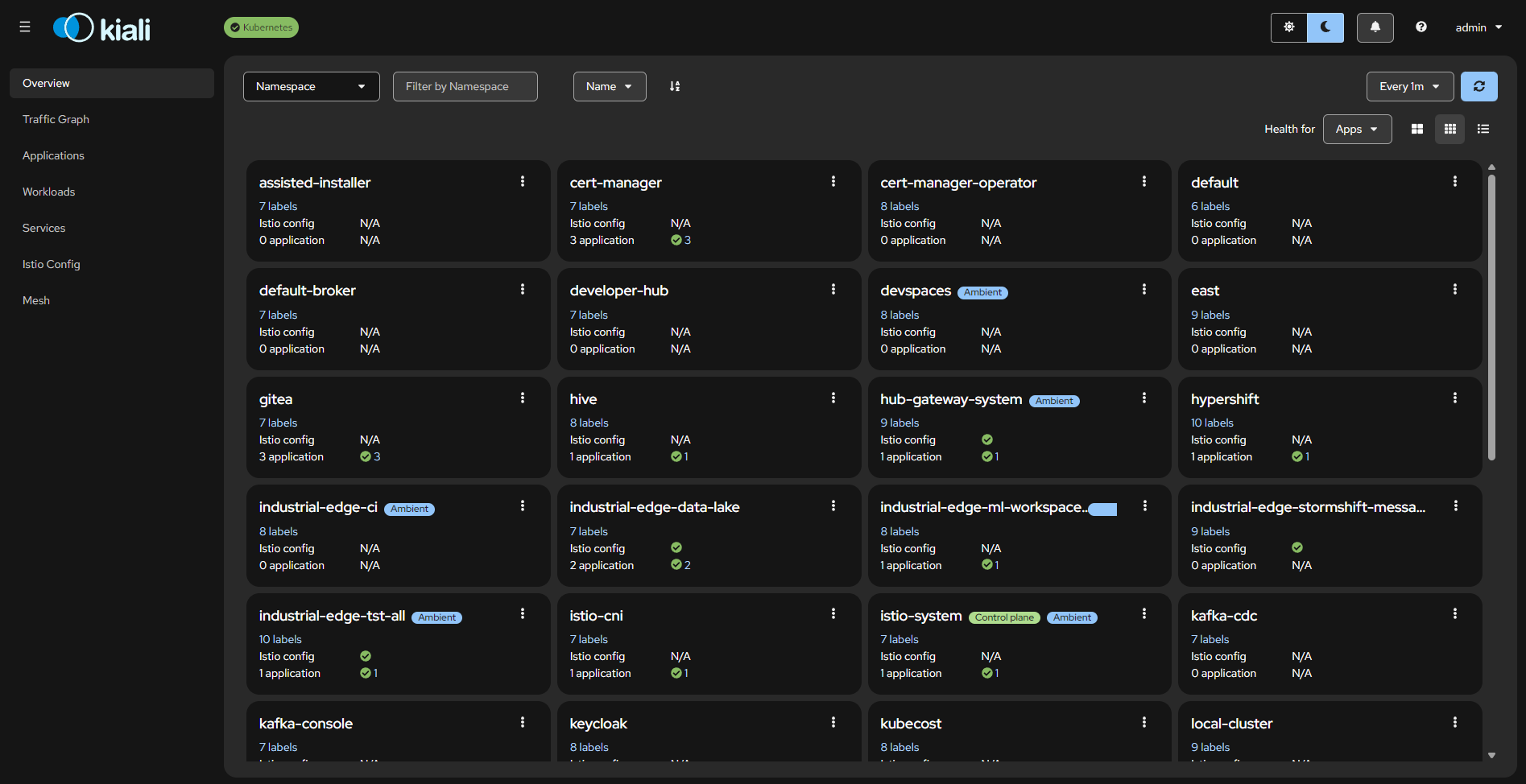

Kiali – Service Mesh topology

Kiali traffic graph and mesh topology in the OpenShift Console (OSSM plugin).

Version and channel

Channel Version ztunnel Use
candidates 3.0.0-tp.2 No Tech Preview — do not use for production demos
stable-3.2 3.2.x Yes Recommended for this platform (OCP 4.18–4.21)

Subscription: servicemeshoperator3 (channel: stable-3.2) is installed automatically on hub and spokes via:

  • Clustergroup subscriptions (charts/region/{hub,east,west}/values.yaml)
  • operators-edge (spoke PULL) and operators-platform (spoke PUSH via spoke-meta-push)

Mesh manifests: charts/all/servicemeshoperator3 (sync-wave 4 on hub and spokes, after operator CSV).

Ambient architecture

flowchart TB
  subgraph Node["OpenShift Node"]
    ZT["ztunnel DaemonSet<br/>L4 mTLS + metrics"]
    CNI["Istio CNI<br/>traffic redirect"]
    POD["Application pods<br/>no sidecar"]
    CNI --> ZT
    POD --> CNI
  end
  subgraph L7["Optional L7"]
    WP["Waypoint Gateway<br/>HBONE :15008"]
    ZT --> WP
  end
  ISTIOD["istiod"] --> ZT
  ISTIOD --> WP
Piece Purpose
ztunnel Per-node L4 proxy: mTLS, TCP metrics, ambient enrollment
Waypoint Optional L7 Envoy for HTTP policy and istio_requests_total on meshed traffic
Istio CNI Redirects pod traffic to ztunnel without sidecar injection
Telemetry CR Enables Prometheus metric providers for the mesh

GitOps resources

The servicemeshoperator3 chart deploys:

  1. Namespaces: istio-system, istio-cni, ztunnel
  2. Istio CR — profile: ambient, trustedZtunnelNamespace: ztunnel
  3. IstioCNI CR — profile: ambient and values.cni.ambient.reconcileIptablesOnStartup: true (required for ztunnel socket and L4 metrics)
  4. ZTunnel CR — must reach Ready; verify oc get ds -n ztunnel
  5. Waypoint Gateway per mesh namespace (Industrial Edge, hub-gateway-system)
  6. Telemetry/mesh-default in istio-system
apiVersion: sailoperator.io/v1
kind: IstioCNI
metadata:
  name: default
spec:
  namespace: istio-cni
  profile: ambient
  values:
    cni:
      ambient:
        reconcileIptablesOnStartup: true

Troubleshooting ztunnel (ZTunnelNotHealthy)

Symptom Cause Fix
ztunnel 0/N Ready, log: failed to connect ... ztunnel.sock IstioCNI without profile: ambient Add profile: ambient to IstioCNI CR; CNI logs must show AmbientEnabled: true
No istio_tcp_* in Prometheus ztunnel not Ready Fix CNI first, confirm PodMonitor in ztunnel namespace
InstallPlan blocked on CRD v1alpha1 removal TP2 → GA upgrade Delete Istio/IstioCNI CRs and sailoperator CRDs, reinstall stable-3.2

Sync-wave ordering (ambient)

Ambient enrollment is three phases inside charts/all/servicemeshoperator3 (not charts/all/namespaces):

Phase Sync wave Resources
1 0 istio-system, istio-cni, ztunnel namespaces; IstioCNI (profile: ambient, reconcileIptablesOnStartup: true)
2 1 Istio + ZTunnel CRs (Ready before apps start)
3 2 istio.io/dataplane-mode: ambient on workload namespaces
4 3 Waypoint Gateway (HBONE :15008) where L7 policy is needed

reconcileIptablesOnStartup: true repairs CNI rules on node restart but does not retro-configure pods that started before ztunnel — restart those workloads if you see upstream connect error. See Troubleshooting.

Namespaces that stay off mesh (charts/all/namespaces, no ambient label):

Namespace Mesh mode Reason
stackrox none (istio.io/dataplane-mode: none) ACS Central ↔ PostgreSQL
industrial-edge-data-lake none MinIO / double-TLS patterns

Operator discovery

The Sail/Istio operator watches Istio, IstioCNI, ZTunnel, and Telemetry cluster/network namespaces (istio-system, istio-cni, ztunnel). Application workloads are enrolled implicitly by labeling namespaces istio.io/dataplane-mode: ambient (set via charts/all/namespaces). Optionally declare waypoint Gateway resources where HTTP policy/L7 metrics matter — controllers reconcile those refs regardless of Deployment annotations.

Metrics and dashboards

Screenshots: the Grafana gallery lives on Observability (four panels with click-to-zoom). Below is the metric cheat-sheet — keep Grafana UX details there to avoid duplicating captions here.

Metric family Source When available
istio_tcp_* ztunnel After IstioCNI ambient profile + ztunnel Ready; non-zero only with traffic
istio_requests_total Waypoints / ingress gateways HTTP through waypoints or hub-gateway-istio
kafka_server_kafkaserver_brokerstate Strimzi JMX 3 = broker running
kafka_network_requestmetrics_requestspersec_total Strimzi JMX Reliable throughput signal for Grafana
kafka_server_replicamanager_* Strimzi JMX Leaders, partitions, under-replicated

Scraping: charts/all/istio-monitoring — PodMonitors for gateways/waypoints, ztunnel, Kafka; RoleBindings for UWM.

  • Hub dashboards: charts/all/grafana-dashboards — gauges, pie charts, bar gauges for Kafka; L4 bar gauge row on multi-cluster-istio
  • Spoke dashboards: charts/all/spoke-dashboards — local-metrics (ztunnel readiness gauge, Kafka bargauge/piechart, L4 timeseries)

Avoid Grafana queries on kafka_server_brokertopicmetrics_* with JMX _objectname filters — those series are not present in the current Strimzi scrape config.

Kiali and OSSM Console

Deploy Kiali + OSSMConsole via charts/all/kiali on hub and spokes. The console plugin requires:

  • ClusterRoleBinding → cluster-monitoring-view for kiali-service-account
  • prometheus.auth.use_kiali_token: true and thanos_proxy.enabled: true

Without ztunnel (TP2), Kiali shows topology but no traffic graph.

Multi-cluster considerations

  • Install the same OSSM3 channel on hub and all spokes.
  • Hub gateway routes HTTP to spoke Routes (port 80, ServiceEntry, Host header rewrite) — see Hub Gateway.
  • Cross-cluster mesh metrics on hub Grafana use Skupper-exported Prometheus — see Observability.

Documentation

Charts: charts/all/servicemeshoperator3, charts/all/istio-monitoring, charts/all/kiali, charts/all/hub-gateway, charts/all/spoke-gateway.
