Guide: running the demo

Three devfile tasks, app access, the RHDA report, and how Nexus + Tekton wire Lightwell into the build.

Run the demo (3 steps)

Factory URL (OpenShift Dev Spaces / Developer Sandbox): workspaces.openshift.com/#…/demo-lightwell

demo-up — Helm umbrella: Nexus + Lightwell proxy (SA on the remote) + Tekton PipelineRun + JBoss deploy. Or from a laptop: helm upgrade --install demo charts/demo-lightwell … with Lightwell SA in values.
analyze-cves — prepares Maven settings → Nexus and the workspace report path under .rhda/. Then open app/pom.xml and run Red Hat Dependency Analytics Report (Command Palette, pie-chart icon, or right-click). The terminal alone never opens the HTML report.
Open the app home and HAL console using the Routes below.

Access — app & JBoss / WildFly console

Demo / sandbox only — not production credentials

Passwords below are ephemeral chart defaults for Developer Sandbox reproducibility. They rotate when the sandbox expires, are unsuitable for any shared or production cluster, and are a bad pattern to copy into real supply-chain work. Prefer generating secrets at install time (helm … --set / sealed secrets) outside this demo.

Example live Routes from a Developer Sandbox project (ephemeral; your namespace and cluster host will differ). Pattern: https://<route>-<namespace>.apps.<cluster>/. Discover yours with oc get route -n <namespace>. Management user comes from Secret jboss-admin (see chart / add-user.sh).

Surface	Example URL pattern	Auth
App home	`jboss-app-<ns>.apps.…/` · open example	none
Health JSON	`…/health` · open example	none — expect `commons-io: 2.11.0.rhlw-00001`
HAL Management Console	`jboss-app-mgmt-<ns>.apps.…/console` · open example	Secret `jboss-admin` (reveal below)
Nexus UI	`nexus-<ns>.apps.…/` · open example	chart demo admin (reveal below)

Reveal ephemeral demo passwords (sandbox only)

Collapsed on purpose — bad practice to lead with secrets on a supply-chain page.

HAL / WildFly (jboss-admin): admin / Admin#123
Nexus UI (chart default): admin / admin123

Prefer reading from the cluster when possible: oc get secret jboss-admin -o jsonpath='{.data.password}' | base64 -d. For your own installs, override with generated secrets — do not copy these values into production.

HAL Console troubleshooting: 403 or "Authentication required"

Use the management Route host (not the app Route). Leave the Route path empty so both /console and /management work on the same host — a /console-only path breaks Bootstrap (503).

If the browser console shows /management 403 and "Authentication required" while Keycloak adapter is 404, WildFly rejected the HAL Origin header. The chart sets MANAGEMENT_ALLOWED_ORIGINS to the management Route HTTPS URL (http-interface allowed-origins). Keycloak 404 is expected — this demo uses local ManagementRealm digest auth, not Keycloak.

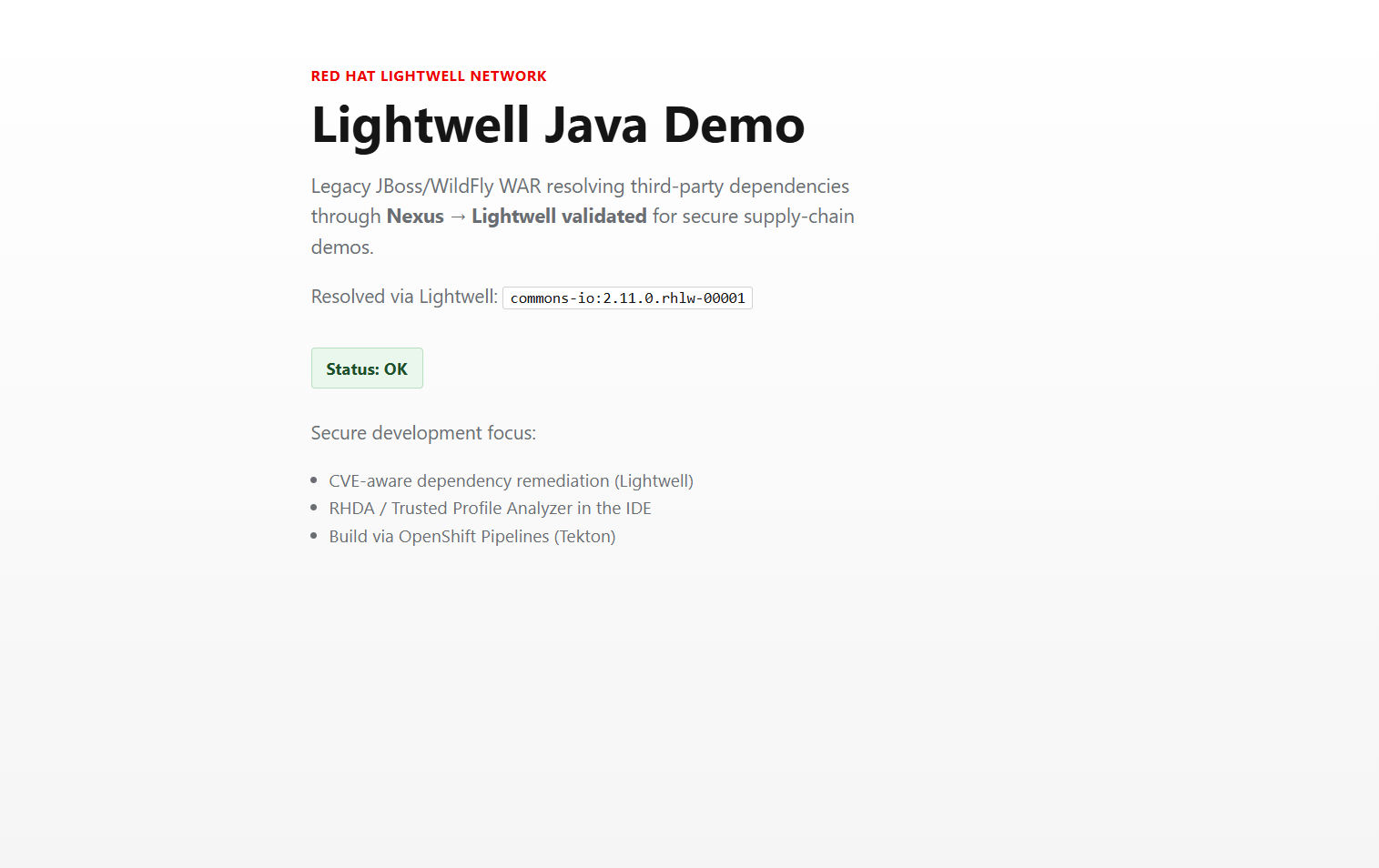

Lightwell Java Demo app home showing commons-io rhlw version — App home: Status OK and Lightwell-resolved `commons-io:2.11.0.rhlw-00001`.

HAL server.log with ROOT.war deployed — HAL → Runtime → Log Files → `server.log`: `Deployed "ROOT.war"`, web context `/`, WildFly started. Use your own management Route after deploy (host and pod name vary per account).

TPA (RHDA) in the IDE

The IDE plugin is Red Hat Dependency Analytics (redhat.fabric8-analytics) — the VS Code client for Trusted Profile Analyzer. It is listed in .vscode/extensions.json and .che/extensions.json so Dev Spaces installs it at workspace startup.

Confirm the extension is enabled (Extensions view → redhat.fabric8-analytics).
Run Devfile task analyze-cves (Maven settings → Nexus + .rhda/ report path).
Open app/pom.xml → Command Palette → Red Hat Dependency Analytics Report.

Settings live in .vscode/settings.json (redHatDependencyAnalytics.reportFilePath, backend URL, Maven -s .m2/settings.xml).

Full RHDA report screenshot is in the journey carousel (single copy on the site). Green banner = remediations available; table may still list OSV Direct Vulnerabilities on .rhlw rows.

View journey slide →

Nexus + Lightwell SA + Tekton `settings.xml`

This is the enterprise-shaped piece of the demo: one service account on the proxy, many Maven clients that never see that credential. Understanding this boundary is the main "effort" the charts encode for you.

Boundary 1

SA lives on Nexus → Lightwell

Secret lightwell-sa (username + JWT) is wired only into the Nexus configure Job. Nexus stores it as HTTP basic auth on the Maven proxy remote, not in every developer laptop.

Boundary 2

Clients talk only to Nexus

Tekton (and Dev Spaces) use a ConfigMap settings.xml that mirrors * to http://nexus:8081/repository/maven-public/. No Lightwell password in that file.

Boundary 3

Cache on the PVC

First resolve hits packages.redhat.com with the SA; later builds reuse blobs on the Nexus PVC (contentMaxAge / metadataMaxAge = 1440 minutes).

What Helm actually builds (effort you would otherwise do by hand)

1. Capture Lightwell service account into a Secret Umbrella values lightwell.username / lightwell.token → Secret lightwell-sa (charts/demo-lightwell/templates/secrets.yaml). That is the only credential the fork must fill for the Nexus path.
2. Configure Nexus as a Maven proxy (not a hosted Lightwell repo) A post-deploy Job (charts/nexus/templates/configure-job.yaml) waits for the Nexus admin API, then POST /service/rest/v1/repositories/maven/proxy for maven-lightwell-validated with remoteUrl = https://packages.redhat.com/api/pulp-content/public-lightwell-demo/java/validated/ and httpClient.authentication = the SA from lightwell-sa. Layout policy is PERMISSIVE so S3-style redirects from the upstream work.
3. Fold the proxy into maven-public Same Job PUTs the group so members are maven-releases, maven-snapshots, maven-lightwell-validated, maven-central. One URL then covers Lightwell remediations and Central for plugins/transitive deps.
4. Render Maven settings as a ConfigMap (not a file in the git tree) charts/demo-lightwell/templates/maven-settings-configmap.yaml creates ConfigMap maven-settings-lightwell with key settings.xml: override the default HTTP blocker, mirrorOf * → Nexus group, checksumPolicy: warn (Lightwell often omits .sha1/.md5). Deliberately no <servers> block for Lightwell.
5. Mount that ConfigMap into Tekton as a workspace (not a Deployment volumeMount) PipelineRun binds workspace maven-settings to the ConfigMap (charts/demo-lightwell/templates/pipelinerun.yaml). The Task sees $(workspaces.maven-settings.path)/settings.xml and runs mvn -B -s "${SETTINGS}" package (charts/demo-lightwell/templates/tekton-pipeline.yaml). The step only injects LIGHTWELL_USERNAME for logs/readiness — Maven never receives the JWT.

Resolution path (what you should see in Tekton logs)

Maven (Tekton task)
  └─ -s /workspace/maven-settings/settings.xml
       mirrorOf * → http://nexus:8081/repository/maven-public/
         ├─ maven-lightwell-validated  → Lightwell (SA on remote) → cache on PVC
         │     e.g. commons-io:2.11.0.rhlw-00001
         └─ maven-central              → plugins / non-Lightwell deps

Contrast — GitHub Actions contingency path (no Nexus):
  renders app/settings-lightwell-direct.xml.template with SA in <servers>
  and calls packages.redhat.com directly.

Why this effort matters

Without the proxy + group + ConfigMap workspace pattern, every PipelineRun / Dev Spaces workspace would need the Lightwell JWT, rotation would touch every client, and you would lose a shared on-cluster cache. The charts encode the Red Hat–recommended shape: organization credential on Nexus, anonymous in-cluster Maven clients, PVC-backed cache. Proof in the journey: Tekton logs show Downloaded from maven-lightwell-validated: … rhlw … (see carousel steps 8b / 8c).

Terminology & Glossary

Key Red Hat ecosystem terms used in this demo.

RHDA / TPA: Trusted Profile Analyzer (product) exposed in the IDE as the Red Hat Dependency Analytics extension (redhat.fabric8-analytics). Scans your POM for CVEs and Red Hat remediations — a different plane from Artifact Hub image scans.
Lightwell (.rhlw): Red Hat Lightwell Network. Provides rebuilt, remediated Java libraries appended with the .rhlw suffix to address CVEs without waiting for upstream.
OSV: Open Source Vulnerabilities database. The underlying data source that RHDA queries, which may still report upstream CVEs on validated builds.
GAV: Group, Artifact, Version. The standard Maven coordinates (e.g., commons-io:commons-io:2.11.0).
SA / JWT: Service Account / JSON Web Token. The credential used by Nexus to authenticate as an organization proxy against Lightwell's registry.
HAL: The WildFly management console interface used to inspect the running JBoss/WildFly server.
