Migration sequence

Linux/bash is the default. This page matches docs/runbooks/00-secuencia-y-matriz.md. On Git Bash, follow that same procedure with MSYS_NO_PATHCONV=1 (docs/runbooks/01-bis and 02-bis only add the Windows path rule).

Complete Prerequisites before step 1.

Order of operations

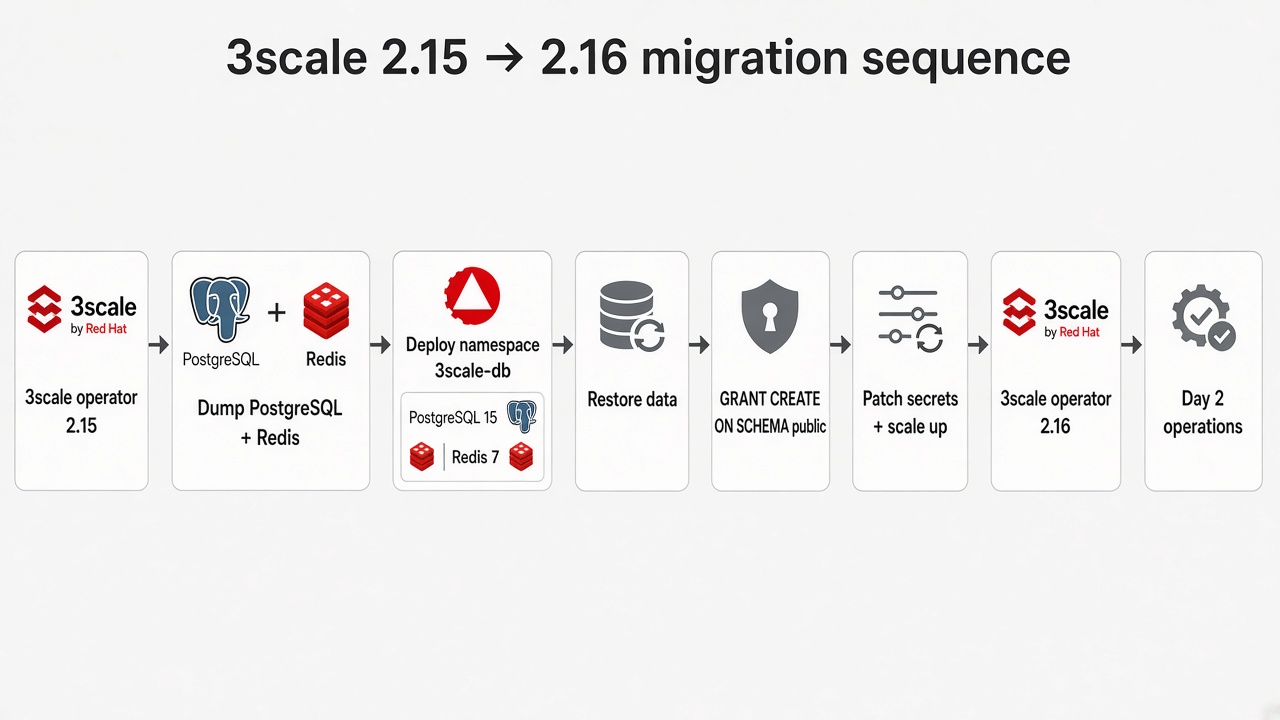

Migration sequence

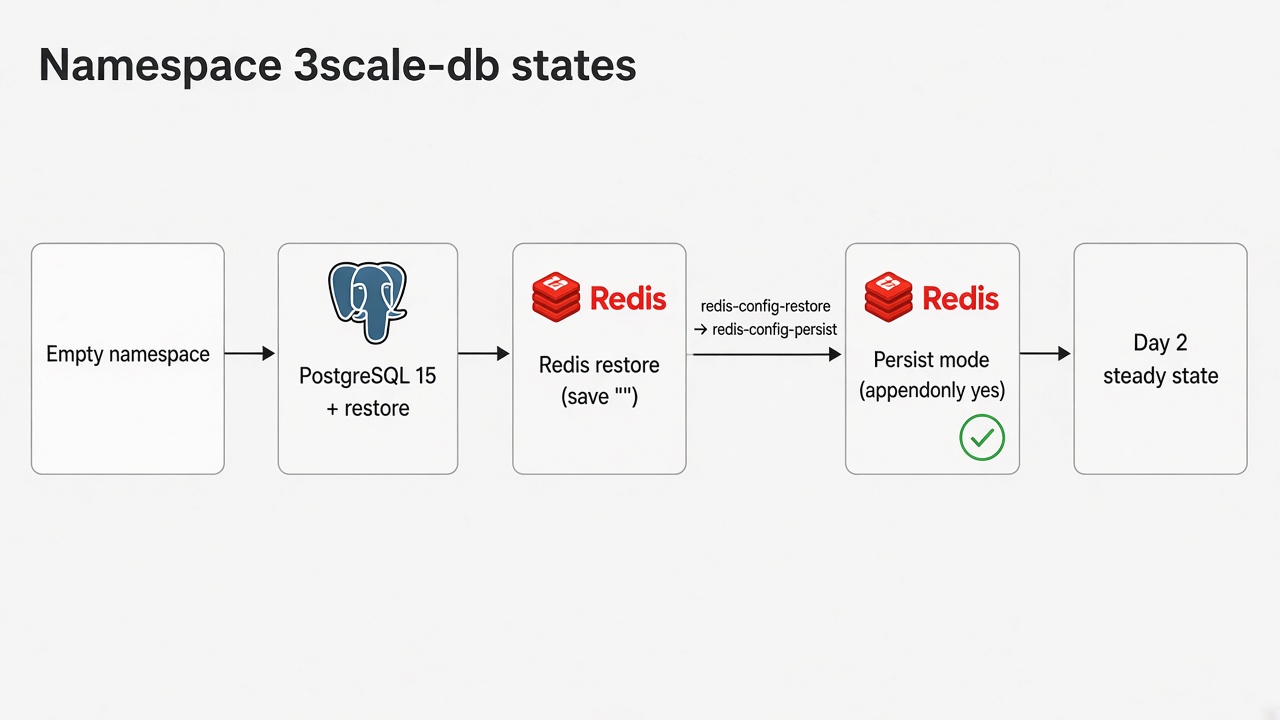

Namespace 3scale-db states

  1. Install 3scale 2.15 with embedded databases (Install 3scale 2.15 (lab)).
  2. Confirm the matrix: OpenShift supported by both 2.15 and 2.16; latest CSV on threescale-2.15.
  3. Back up PVCs and the connection secrets. A VolumeSnapshot of a live database PVC is crash-consistent. The EFS CSI driver does not implement VolumeSnapshot, so back up system-storage with AWS Backup or a file copy.

  4. Capture replicas before the first scale-down. Write the file outside the git repo:

    oc get deploy -n 3scale -o json > "$HOME/3scale-replicas-before-cutover.json"

  5. Cycle 1, PostgreSQL. Scale the operator and 3scale components to 0 except system-postgresql. Dump, restore into PostgreSQL 15, ANALYZE, compare table counts, scale the application back. The operator does not raise system-app or system-sidekiq from 0; use the JSON. Leave the embedded PostgreSQL Deployment at 0 and keep its PVC. Externalize PostgreSQL.

  6. Cycle 2, Redis. Scale down again, except the embedded Redis you are dumping. SAVE, compare LASTSAVE and DBSIZE, copy dump.rdb, load it into Redis 7, scale back. Leave embedded Redis at 0 and keep those PVCs. Externalize Redis.
  7. Smoke test on 2.15 against the external databases: admin login, create and read one account, one APIcast call, Sidekiq queues not stuck.
  8. Fresh dump of PostgreSQL and both Redis instances immediately before the channel switch. This is a second backup, not a replacement for the one that opened the window.
  9. Switch the channel by setting Pattern extraValueFiles to /values-216-external.yaml. That file sets threescale-2.16. Run SELECT version(); on the server before the switch. Upgrade operator to 2.16.
  10. Upgrade OpenShift later, if needed. Do not combine it with the 3scale upgrade.
  11. Day 2 in 3scale-db: Redis persist, pinned digests, backups. Day 2 operations.

Until system-app-pre has run on 2.16, rollback is scaling the embedded databases back up. After that job, new writes live only on the external database. Rollback is a restore from the fresh dump. There is no OLM downgrade.

The lab PostgreSQL dump was 719027 bytes. That figure is a small database, not a production estimate.

Do not combine upgrades

Do not run the 3scale upgrade and the OpenShift upgrade in the same maintenance window.

Value files

File When
values-215.yaml Install. Channel threescale-2.15, embedded databases, systemStorageClass: efs-sc.
values-cutover.yaml Both dump/restore cycles. External databases exist. 3scale still uses the embedded ones until you switch the next file. Redis configMode: restore only because this file sets allowRestore: true. No Redis auth.
values-216-external.yaml After the fresh dump and the 2.15 smoke test. Channel threescale-2.16, externalComponents, Redis auth, configMode: persist.

GitOps is the source of truth. extraValueFiles is the switch. Vault and ExternalSecret write the Secrets. Argo overwrites a manual oc patch of those Secrets or of the APIManager.

values-216-singlenode.yaml installs 2.16 directly on one node. It is not this migration.

Deploy

oc apply -f examples/pattern-cr/hub-215.yaml
./pattern.sh make load-secrets

During the window, set extraValueFiles to /values-cutover.yaml. After the fresh dump and the smoke test, set it to /values-216-external.yaml. See Install with a Pattern CR.
