AI Computer Vision at the Edge
NeuroFace is the reference application for the AI Computer Vision at the Edge Validated Pattern — a full-stack demo of hybrid multi-cluster computer vision using Red Hat middleware (KServe, Kafka, Skupper, Camel K, MaaS, Developer Hub, DevSpaces, OpenTelemetry, Grafana, Kubecost).
What problem does it solve?
Workshop participants need a multimodal AI demo (webcam + LLM chat + PPE detection + object detection) without deploying a full custom vision pipeline. NeuroFace combines browser-based face analysis, YOLO PPE serving (hardhat, safety vest, goggles), 80-class object detection (YOLOv4-tiny), and MaaS (llama-scout-17b) for contextual responses — one Route on the hub, integrated into Developer Hub and the Hybrid Mesh AI Workshop.
| Item | Location |
|---|---|
| Pattern name | AI Computer Vision at the Edge |
| Reference app | NeuroFace |
| Helm wrapper | charts/all/neuroface/ |
| Upstream chart | maximilianoPizarro/neuroface v1.5.0 |
| Software template | Developer Hub → AI Computer Vision at the Edge (ai-computer-vision) |
| YOLO PPE serving | KServe InferenceService yolo-ppe-serving (pre-built neuroface-ppe-serving:v1.5.0, KServe v1+v2) |
| PPE Workbench | OpenShift AI Notebook ppe-workbench + route ppe-workbench.<hub-domain> |
| PPE Retrain Workbench | OpenShift AI Notebook ppe-retrain-workbench + MinIO data connection |
| Route | https://neuroface.<hub-domain> (single Route — nginx proxies /api/* to backend) |
| Developer Hub | System neuroface (full catalog registration + software template) |
| Showroom modules | 13–16 AI CV journey (primary); 27–28 Industrial Edge sensors (optional) |
Not LibreChat: workshop chat multimodal UX is NeuroFace only.
Container images (v1.5.0)
| Image | Tag | Description |
|---|---|---|
quay.io/maximilianopizarro/neuroface-backend | v1.5.0 | FastAPI + PPE + Kafka events + OpenTelemetry |
quay.io/maximilianopizarro/neuroface-frontend | v1.5.0 | Angular 17 + PatternFly 5 UI + PPE/object detection |
quay.io/maximilianopizarro/neuroface-ppe-serving | v1.5.0 | Pre-built YOLOv8 PPE (KServe v1+v2, opencv-headless, ~60s cold start) |
PPE Detection flow
The NeuroFace UI sends base64 JSON to POST /api/ppe/detect. Only the frontend Route (neuroface.<hub-domain>) is required:
Browser → Route neuroface → frontend nginx → backend /api/ppe/detect
→ hub-local yolo-ppe-serving InferenceService (KServe v1 /v1/predict)
→ Kafka cv.ppe.detections (east spoke cv-kafka via Skupper)
→ Camel K Integration → Mailpit alert email
Do not create extra OpenShift Routes that bypass the backend (e.g. /api/ppe/v1/predict → YOLO directly). YOLO expects raw JPEG binary, not base64 JSON — the backend handles the conversion.
AI Chat flow — direct MaaS vs AI Gateway
| Path | Endpoint | When to use |
|---|---|---|
| Direct MaaS (default) | https://maas-rhdp.apps.maas.redhatworkshops.io/v1 | Workshop simplicity; key from Vault/ESO or RHDP litemaas.apiKey |
| AI Gateway (Kuadrant) | https://ai-gateway.<hub-domain>/v1 | Demo API management — rate limits, API keys via Developer Hub Kuadrant tab |
Default chart values use direct MaaS. To switch for module 23:
oc set env deployment/neuroface-backend \
NEUROFACE_CHAT_MODEL_ENDPOINT=https://ai-gateway.<hub-domain>/v1 \
-n neuroface
Test AI Gateway directly:
curl -sk "https://ai-gateway.<hub-domain>/v1/chat/completions" \
-H "Authorization: Bearer $MAAS_KEY" \
-H "Content-Type: application/json" \
-d '{"model":"llama-scout-17b","messages":[{"role":"user","content":"hello"}]}'
OpenShift AI workbenches use the same MaaS credentials via Vault/ESO (kairos-ai-credentials → neuroface-maas-api-key).

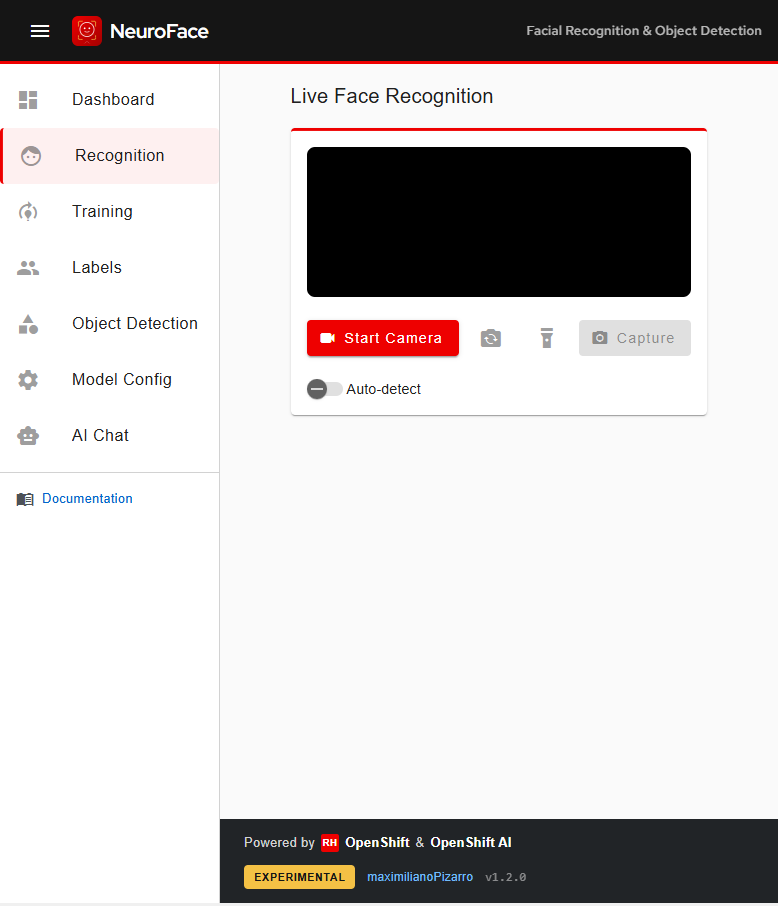

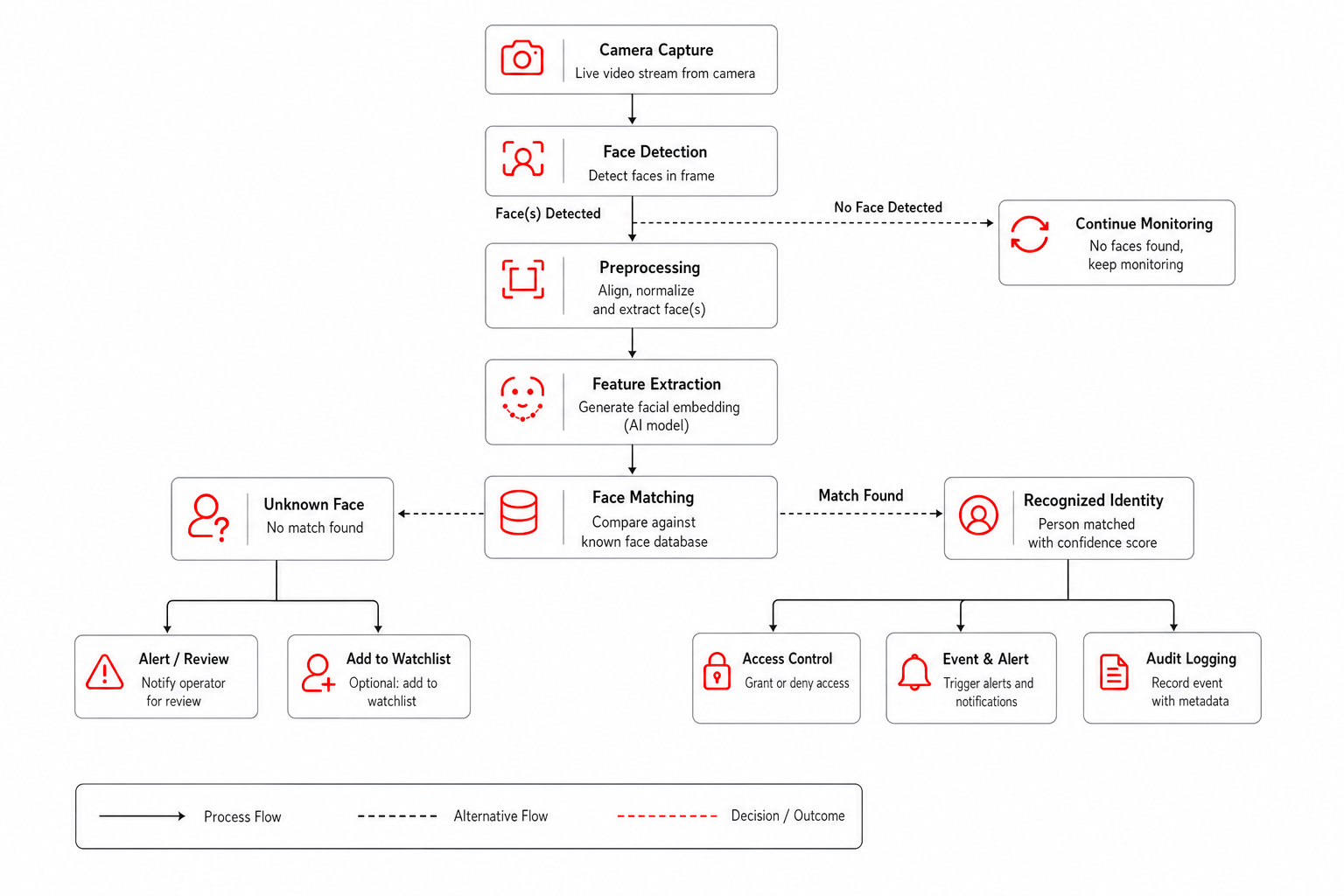

Face Recognition flow

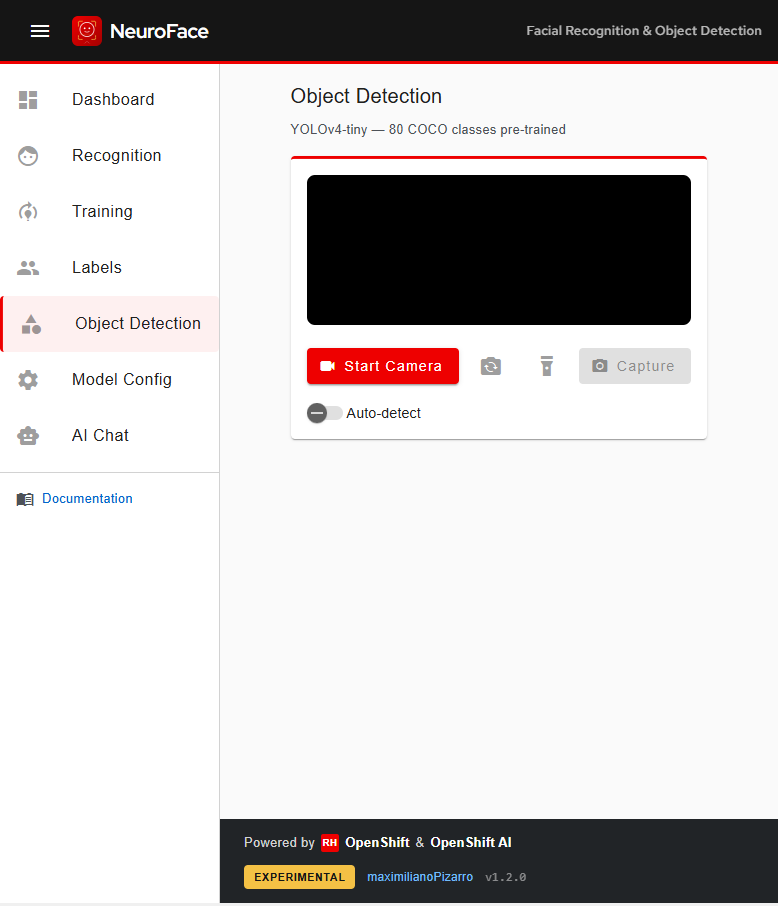

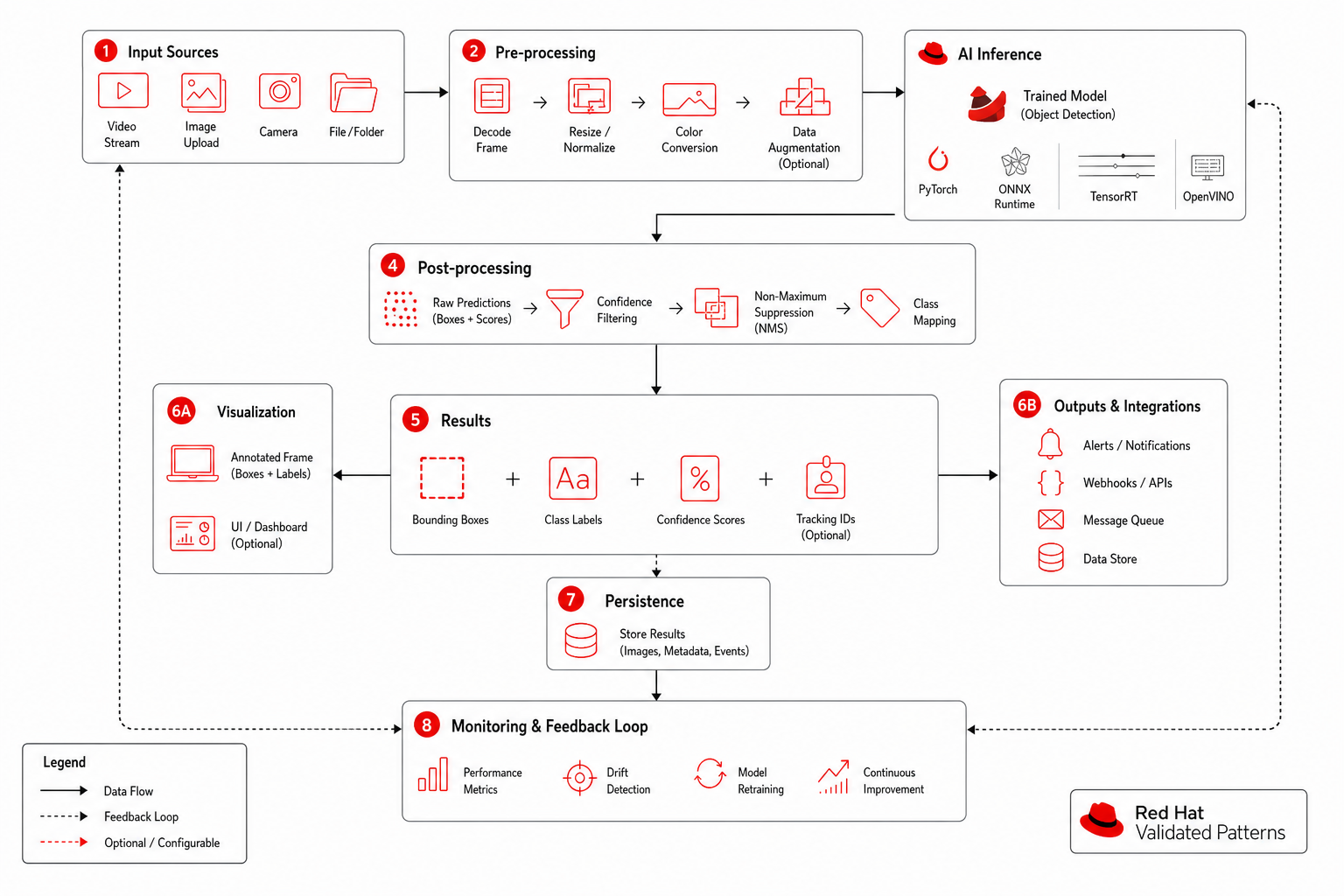

Object Detection flow (80 COCO classes)

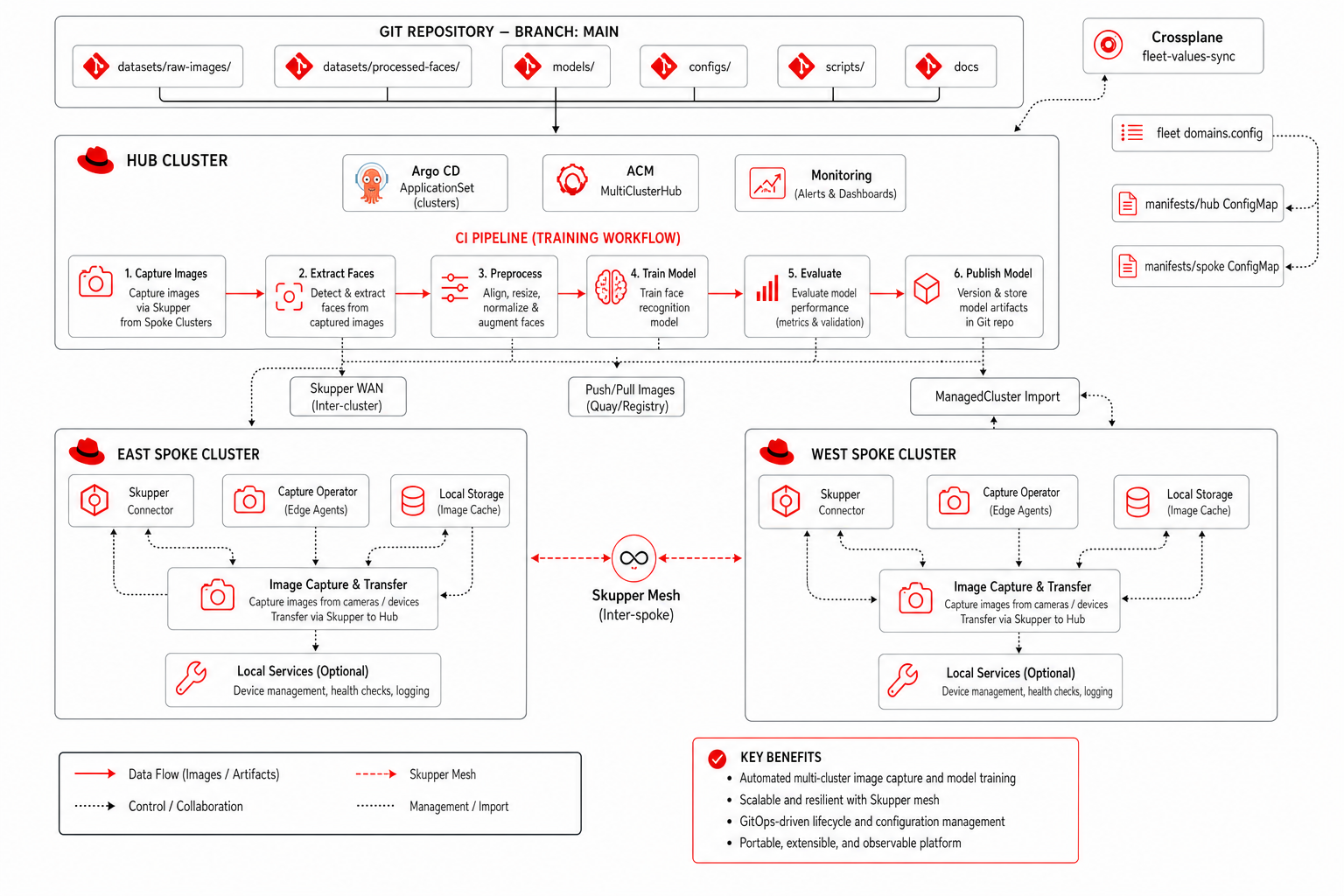

Training flow
UI Screenshots

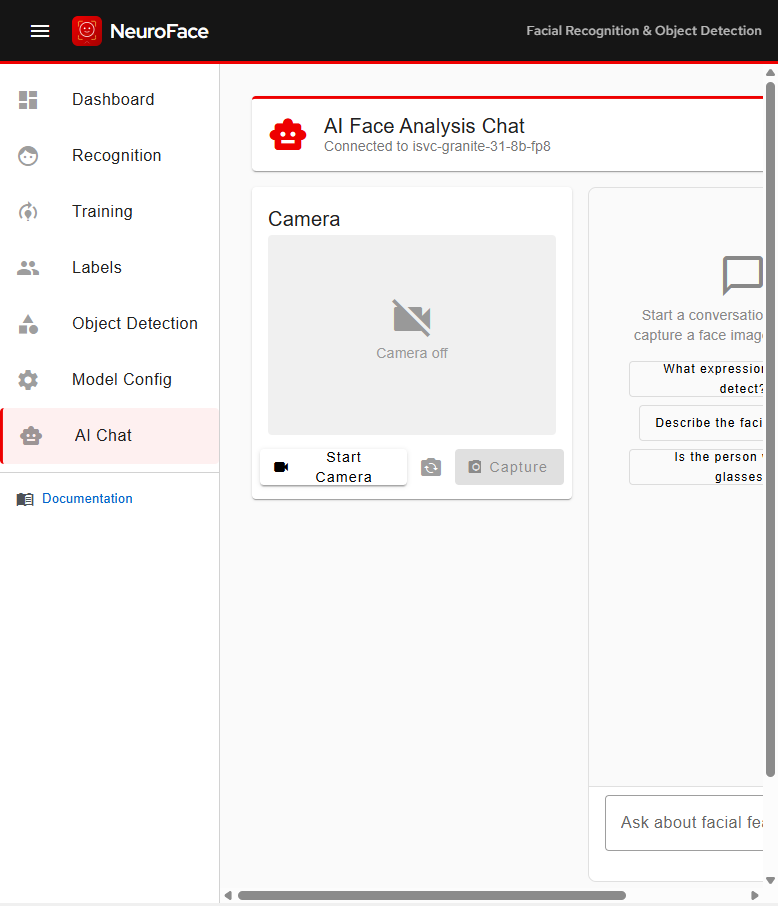

| Chat & PPE analysis | Object detection | Face recognition |
|---|---|---|
 |  |  |
GitOps automation (fresh install)
| PostSync / chart | Purpose |
|---|---|
minio-ppe-model-seed | Uploads best.pt to s3://models/ppe-detection/model/ (hub MinIO) |
yolo-ppe-serving | KServe ServingRuntime + InferenceService (pre-built image, MinIO model) |
ppe-workbench | Jupyter Notebook CR + ppe-detection.ipynb for image PPE lab |
ppe-retrain-workbench | Jupyter Notebook CR + MinIO env for retraining workflows |
ppe-camel-integration | Camel K Kafka → Mailpit for PPE violation alerts |
neuroface-maas-key-sync | Wires NEUROFACE_CHAT_API_KEY from neuroface-maas-api-key |
grafana-dashboards/neuroface-hub | Hub NeuroFace observability dashboard |
MaaS API keys
Preferred: Vault + ExternalSecret — see Vault & External Secrets.
RHDP: inject litemaas.apiKey in field-content / clustergroup values.
Developer Hub: request key via Kuadrant → workshop-llm-tokens API product (AI Gateway path).
Verify
curl -sk "https://neuroface.<hub-domain>/api/ppe/status" # reachable: true
curl -sk "https://neuroface.<hub-domain>/api/ready" # ppe_serving + chat_backend
curl -sk "https://ppe-workbench.<hub-domain>/" # 200 when notebook pod running
oc get inferenceservice yolo-ppe-serving -n neuroface # READY True
oc get kafkatopic -n neuroface-cv cv-ppe-detections # on east spoke
curl -sk -X POST "https://neuroface.<hub-domain>/api/chat" \
-H 'Content-Type: application/json' -d '{"message":"hello"}'
Troubleshooting
| Symptom | Fix |
|---|---|
| PPE not enabled | Chart neuroface.ppe.enabled: true; check InferenceService/yolo-ppe-serving Ready |
| PPE status unreachable | Wait ~60s for model load on predictor pod; check oc logs -l component=predictor -n neuroface |
| PPE detects 0 persons (webcam active) | Remove stray Routes pointing /api/ppe/* directly to YOLO; use frontend→backend path only |
| Kafka events missing | East spoke cv-kafka in neuroface-cv; Skupper kafka-east-tst listener; no SASL creds on producer |
| Mailpit no alerts | Camel Integration ppe-kafka-to-mailpit in neuroface; trigger PPE violation |
| Workbench 503 | Start ppe-workbench in OpenShift AI → Workbenches |
| Chat 401 | maas-facilitator-seed or RHDP litemaas.apiKey; PostSync neuroface-maas-key-sync |
| Backend CrashLoop | Orphan deploy in default — use namespace neuroface only |
| InferenceService not Ready | Confirm aws-connection-ppe-models secret and MinIO seed job completed |
Workshop content: Hybrid Mesh AI Workshop.
Related: OpenShift AI · Vault
Computer Vision Journey (hub-and-spoke)
The NeuroFace CV journey federates PPE inference across east and west spokes — similar in spirit to Industrial Edge hub-gateway load balancing, but dedicated to computer vision.
| Item | Location |
|---|---|
| Hub gateway chart | charts/all/neuroface-gateway/ |
| Spoke inference chart | charts/all/spoke-neuroface-cv/ |
| East Kafka (no IE) | cv-kafka + topic cv.ppe.detections in neuroface-cv |
| Public Route | https://neuroface-cv.<hub-domain> |
| HTTPRoute split | 50% east / 50% west → yolo-ppe-serving via Skupper |
| Mesh mode | Gateway: sidecar (neuroface-gateway-system); spokes: ambient on neuroface-cv |
| OTel tracing | App-level FastAPI + mesh default → cluster-collector → Tempo |
| Grafana dashboard | NeuroFace CV — Participants (uid: neuroface-cv) + hub NeuroFace dashboard |
| Developer Hub | System neuroface-cv-journey + software template ai-computer-vision |
| Showroom helpers | neuroface-cv-status, neuroface-cv-traffic |

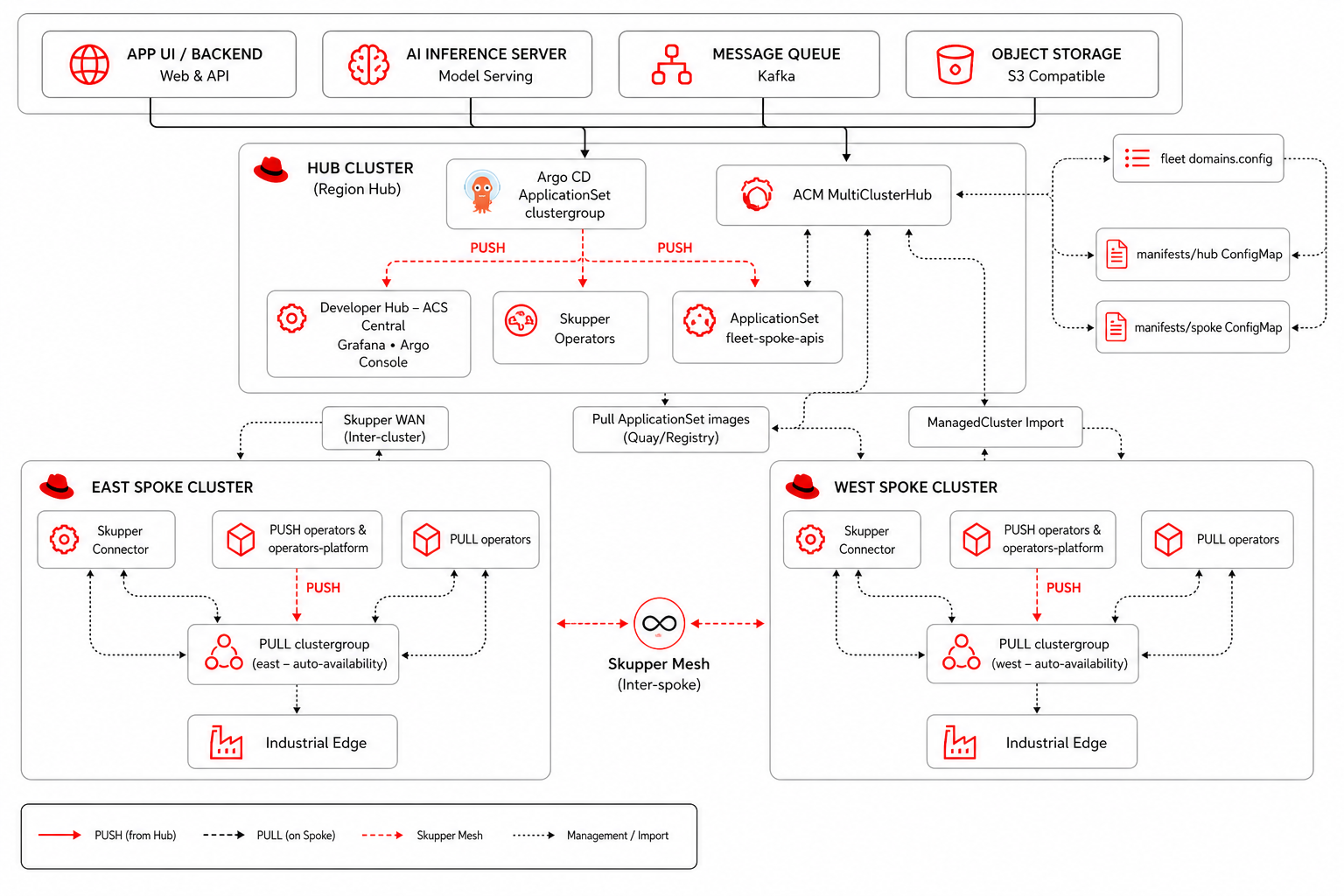

Architecture
- Hub —
neuroface-gateway(Gateway API) exposesneuroface-cv.<hub>with weightedHTTPRouteto Skupper listenersneuroface-cv-east/neuroface-cv-west. - Spokes —
spoke-neuroface-cvdeploys KServeInferenceServiceyolo-ppe-serving in namespaceneuroface-cv(ambient mesh,istio.io/dataplane-mode: noneon predictor pods) with HPA (min 1, max 4, CPU 70%). - Skupper — Connectors on each spoke publish
yolo-ppe-serving:8080; hub listeners bridge intoneuroface-gateway-systemExternalName services. - Model storage — Hub MinIO seeds
best.pt; spokes reach MinIO via Skupperminio-hub; ODH DataConnection secretaws-connection-ppe-models.
Verify
curl -sk "https://neuroface-cv.<hub-domain>/api/ppe/status"
curl -sk "https://neuroface-cv.<hub-domain>/health"
curl -sk "https://neuroface-cv.<hub-domain>/v2/models/yolo-ppe/ready" # KServe v2
bash scripts/verify-neuroface-cv.sh
oc get httproute -n neuroface-gateway-system
oc get inferenceservice yolo-ppe-serving -n neuroface-cv # on east/west spokes
for i in $(seq 1 20); do curl -sk "https://neuroface-cv.<hub-domain>/health"; done
Troubleshooting
| Symptom | Fix |
|---|---|
| CV route 503 | Check neuroface-gateway-istio endpoints; Istio gateway pod must be Programmed |
/api/ppe/status 502 | Skupper listeners/connectors missing; verify oc get listener,connector -n service-interconnect \| grep neuroface-cv |
| One spoke never receives traffic | HTTPRoute weights; confirm both clusters.east.domain and clusters.west.domain on hub |
| PPE pod not ready on spoke | Model download from MinIO ~30s; check predictor pod logs |
| No Grafana metrics | istio-monitoring PodMonitor in neuroface-gateway-system and neuroface-cv (spokes); allow ~2 min after first traffic |
| No Tempo traces | Confirm Telemetry/mesh-default and OTel collector in openshift-opentelemetry |
Industrial Edge sensors (optional)
The sensor stack is disabled by default to simplify deployment. To enable ManuELA / stormshift sensors, uncomment the Industrial Edge applications in charts/region/east/values.yaml and charts/region/west/values.yaml, set industrialEdge.enabled: true in service-interconnect and spoke-gateway charts, and re-sync Argo CD.
