Connectivity Link

Red Hat Connectivity Link (RHCL) is an Application Foundation bundle that brings multi-cluster ingress and API policy using Kubernetes Gateway API with Kuadrant controllers (installed via charts/all/rhcl-operator/). Kuadrant CRDs such as APIProduct, AuthPolicy, PlanPolicy, and TokenRateLimitPolicy are part of RHCL — not a separate product alongside it.

What problem does it solve?

Industrial Edge and workshop APIs need consistent north-south ingress with optional rate limits, API keys, and tiered plans — the same problems F5 or Apigee solve, but native to Kubernetes Gateway API. RHCL + Kuadrant attach policy to HTTPRoute objects instead of bolting on a separate API gateway VM.

Gateway Namespace Role
Hub gateway hub-gateway-system Central VIP-style routing to hub and spoke backends (Hub Gateway)
Spoke gateway per spoke Aggregates IE services behind one entry (charts/all/spoke-gateway)
Workshop APIs workshop-kuadrant-apis Demo AuthPolicy + TokenRateLimitPolicy on MaaS and httpbin routes

Example policies in this repo

Workshop chart charts/all/workshop-kuadrant-apis deploys dedicated Gateway API gateways (workshop-apis, ai-gateway) with Kuadrant policies:

API Product HTTPRoute Plans Policy types
workshop-httpbin workshop-httpbin bronze / silver / gold AuthPolicy + PlanPolicy
workshop-restcountries workshop-restcountries bronze / silver / gold AuthPolicy + PlanPolicy
workshop-mcp-gateway workshop-mcp bronze / gold AuthPolicy + PlanPolicy
workshop-llm-tokens ai-maas free / gold AuthPolicy + PlanPolicy + TokenRateLimitPolicy
  • AuthPolicy — API key authentication (Authorization: APIKEY …); secret selector label app must match APIProduct.metadata.name
  • PlanPolicy — tiered limits keyed off secret.kuadrant.io/plan-id annotation on the API key secret
  • TokenRateLimitPolicy — token-bucket limits on POST /v1/chat/completions (MaaS proxy)

Policies target spec.targetRef → HTTPRoute in workshop-kuadrant-apis or ai-gateway-system. Tune tiers in charts/all/workshop-kuadrant-apis/values.yaml.

RHCL + Sail/Istio mesh (required)

RHCL CSV defaults ISTIO_GATEWAY_CONTROLLER_NAMES to openshift.io/gateway-controller/v1. This platform uses Sail/Istio GatewayClass istio with controller istio.io/gateway-controller. The chart charts/all/rhcl-operator sets the subscription override:

spec.config.env:
  - name: ISTIO_GATEWAY_CONTROLLER_NAMES
    value: istio.io/gateway-controller,openshift.io/gateway-controller/v1

Kuadrant detects the gateway provider only at operator pod startup. After mesh is ready, workshop-kuadrant-apis runs a PostSync Job to restart kuadrant-operator-controller-manager (or use bash scripts/apply-workshop-kuadrant-apis.sh).

Symptom: AuthPolicy / PlanPolicy Invalid (Not Accepted) — MissingDependency: Gateway API provider (istio / envoy gateway) is not installed. Fix subscription env + restart operator; verify oc get kuadrant kuadrant -n kuadrant-system → Ready=True.

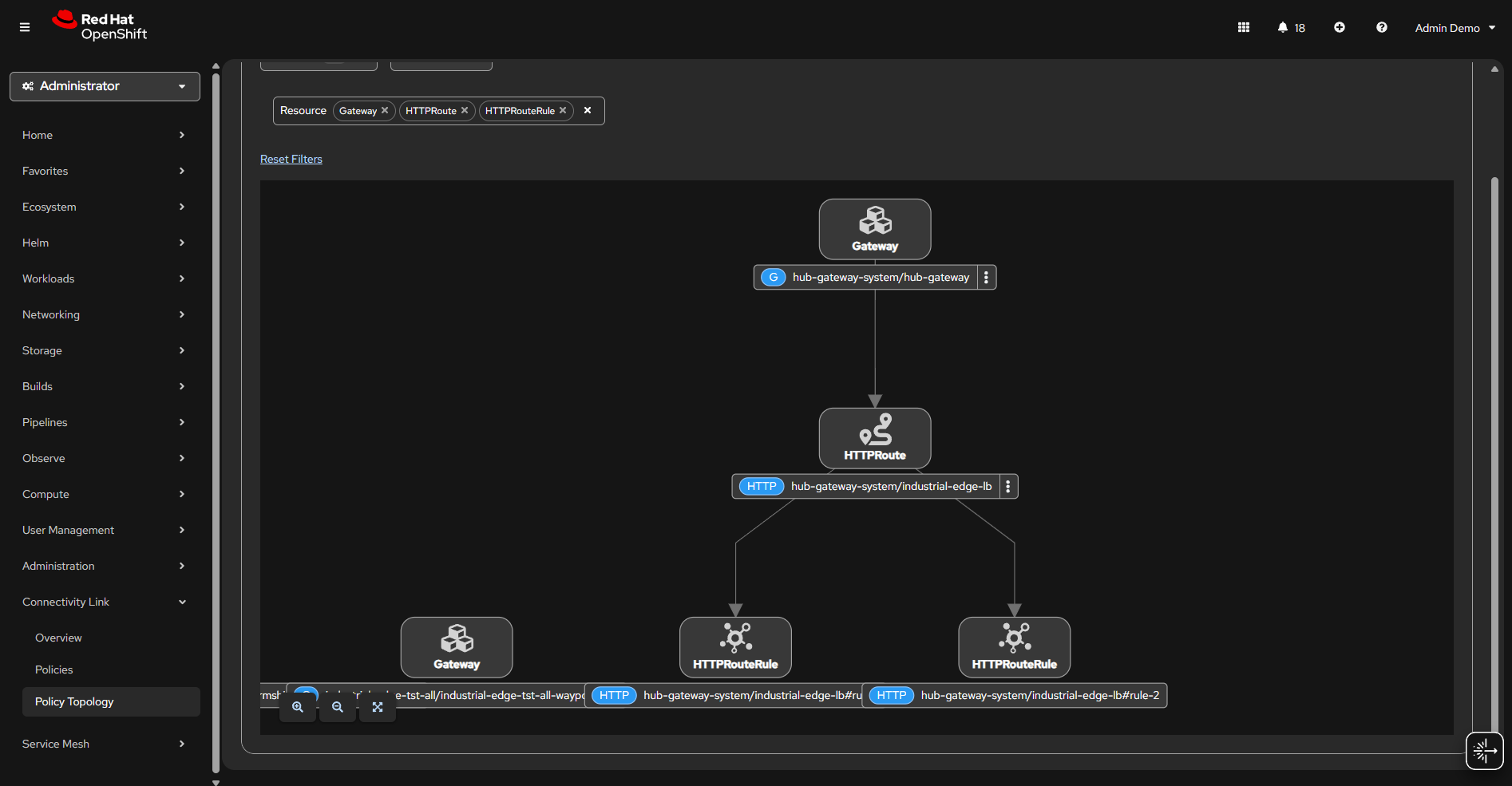

Connectivity Link – Policy Topology

Gateway API policy topology — hub-gateway, HTTPRoute, and route rules in OpenShift Console.

In this platform

  • Gateway API Gateway and HTTPRoute objects align with hub gateway style routing (including weighted splits similar to hardware ADC behavior).
  • Policies may be disabled initially to reduce rollout friction; enable Kuadrant AuthPolicy, RateLimitPolicy, and DNS TLS strategies as you harden environments.

Hub gateway

Connectivity Link – Hub Gateway

Hub cluster Gateway API resources and HTTPRoute attachment.

Spoke connectivity

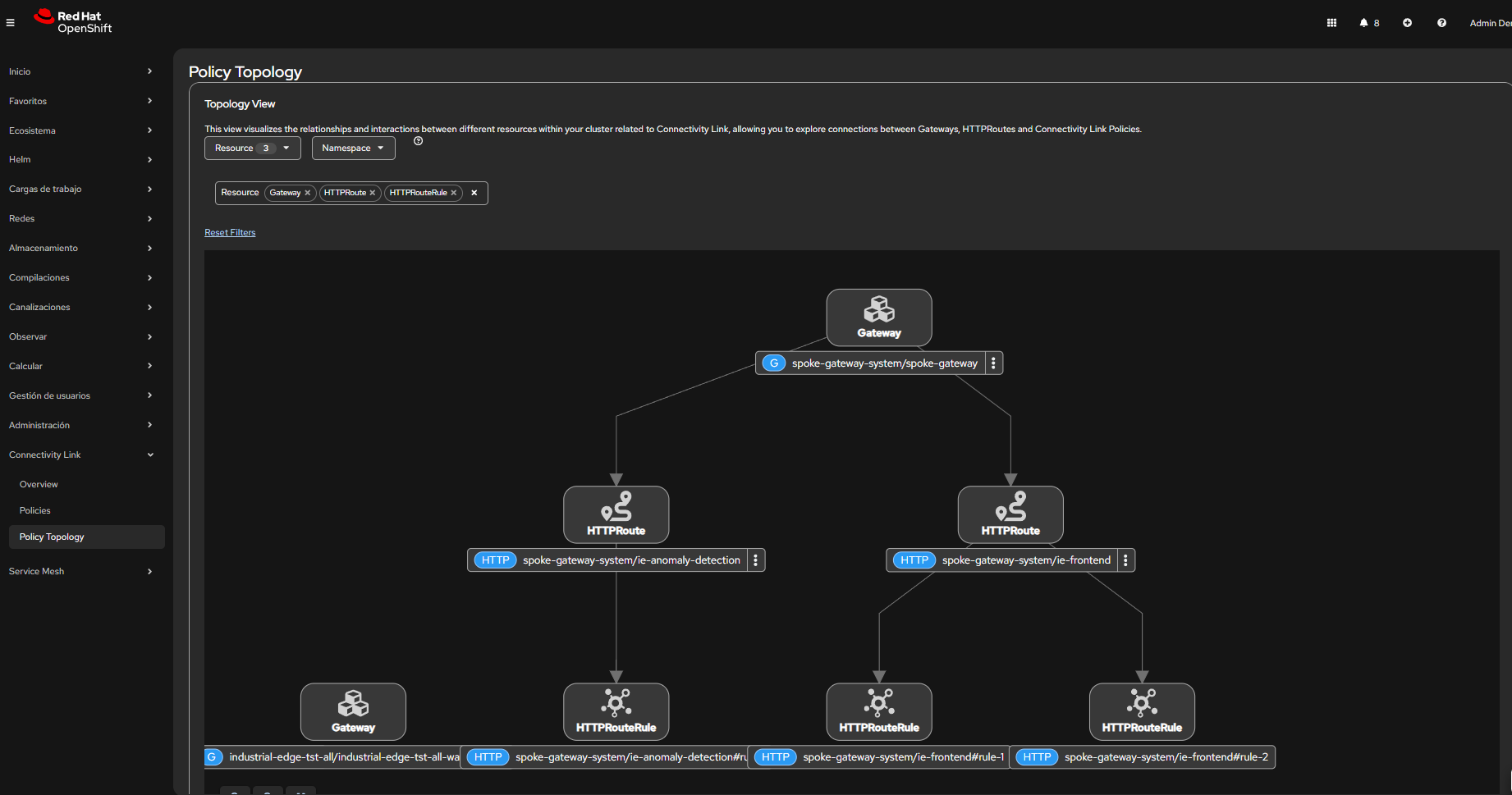

Connectivity Link – Spoke

Spoke cluster Gateway API and backend services exposed through the mesh.

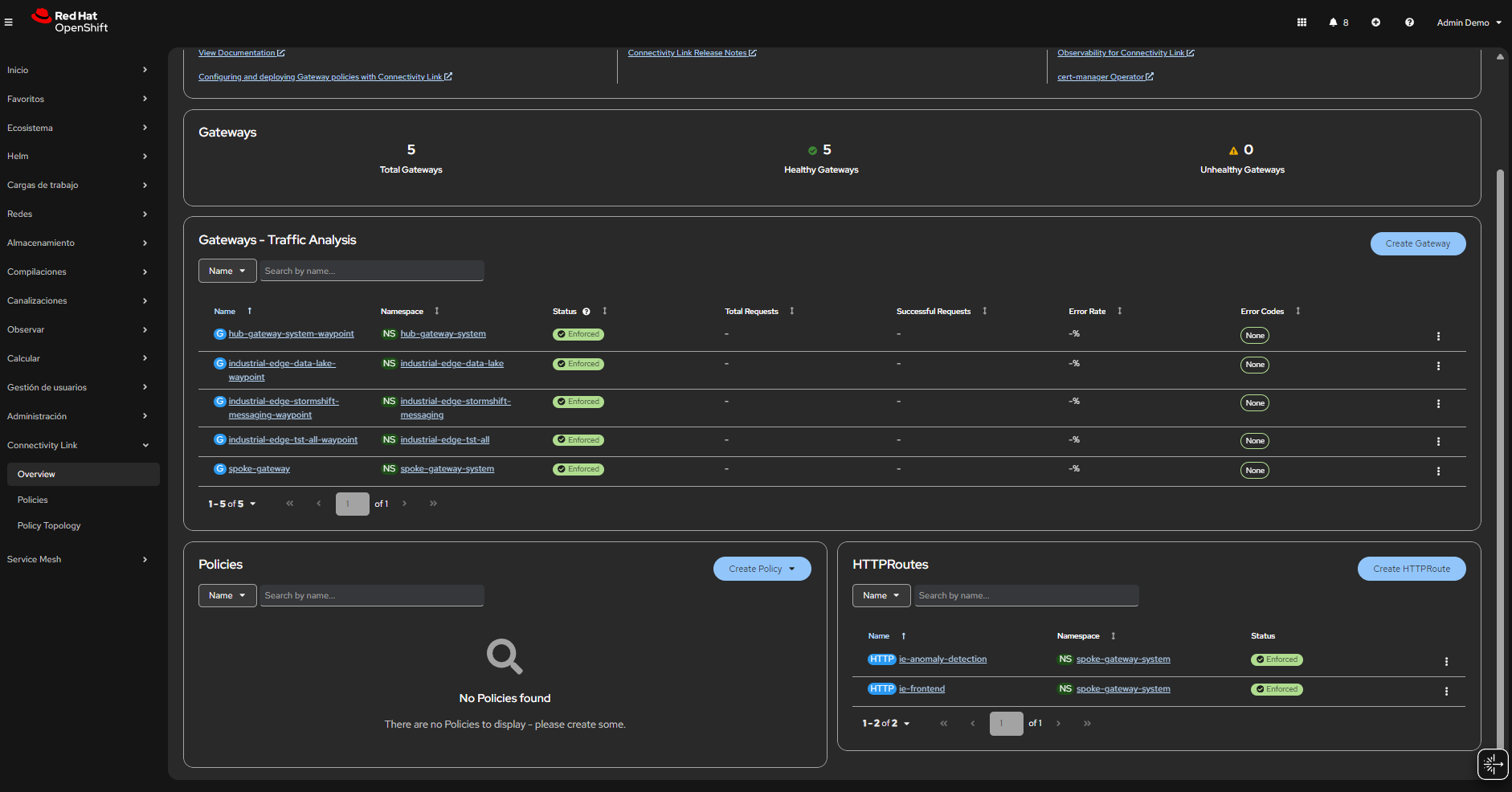

Connectivity Link – Spoke Gateway

Spoke gateway aggregating Industrial Edge services for cross-cluster exposure.

Operator discovery

Connectivity Link (RHCL) / Kuadrant controllers reconcile Gateway API Gateway, HTTPRoute, GatewayClass, plus Kuadrant DNSPolicy, TLSPolicy, AuthPolicy, PlanPolicy, TokenRateLimitPolicy, and APIProduct — controllers watch clusters via operator subscriptions (charts/all/rhcl-operator), not via blanket Deployment annotations.

Typical hub/spoke wiring attaches HTTPRoute spec.parentRefs to Gateway objects (hub-gateway-system, …); verify reconciliation by inspecting Gateway status conditions rather than Pod labels alone.

Chart path: charts/all/rhcl-operator.
