Advanced Cluster Management
Git path: charts/all/acm-hub-spoke/
What problem does it solve?
Running GitOps on three clusters with Argo CD alone means three independent control planes, manual cluster registration, and no fleet-wide policy. ACM gives you a single inventory of hub + spokes, dynamic Placement (which clusters get which workloads), and ManifestWork for hub-initiated changes — without opening VPNs or sharing kubeconfigs in Git.
In this pattern ACM is not optional decoration: it drives PULL GitOps via VP managedClusterGroups, creates PlacementDecisions that feed the fleet-spoke-push ApplicationSet, and runs ManagedClusterAction jobs (Skupper token sync, ACS init bundles, fleet domain patching).
Why ACM and not only Argo ApplicationSet?
| Capability | Argo ApplicationSet alone | ACM + ApplicationSet (this pattern) |
|---|---|---|
| Cluster inventory | Manual Secret per cluster | ManagedCluster auto-import |
| Dynamic cluster selection | Static list or cluster generator | Placement + PlacementDecision (label region: east\|west) |
| Policy / compliance | Not built-in | Policy + PolicyReport across fleet |
| Hub → spoke actions | Limited to Git-synced apps | ManifestWork, ManagedClusterAction, addons |
| Spoke-local GitOps | Separate bootstrap per cluster | VP clustergroup on each spoke via managedClusterGroups |
ApplicationSet (fleet-spoke-push) handles PUSH — a narrow set of operator charts pushed from the hub. managedClusterGroups handle PULL — Industrial Edge, mesh, observability — where each spoke’s local Argo CD reconciles its own charts/region/east|west/values.yaml. ACM is the glue that knows which clusters exist and which strategy applies where.
Red Hat Advanced Cluster Management for Kubernetes (ACM) provides fleet-wide visibility and lifecycle for OpenShift and Kubernetes clusters. In this repository it anchors hub-spoke registration, policy placement, and integration with OpenShift GitOps via GitOpsCluster and related APIs.

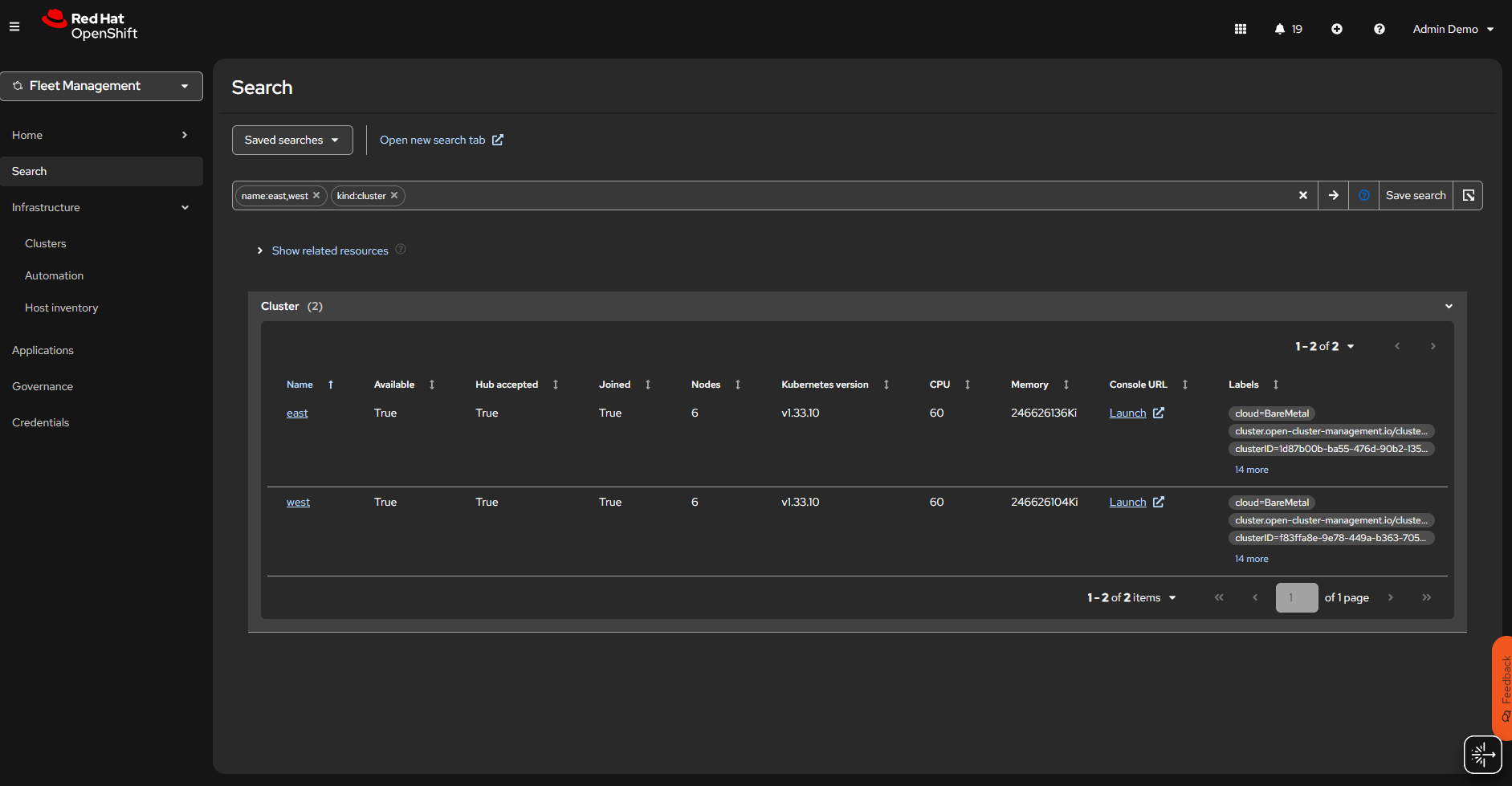

ACM Fleet Management — east and west managed clusters registered on the hub.
Role in this solution
- Inventory managed clusters and apply governance policies consistently.
- Drive which spokes receive Industrial Edge and platform components through placement rules.
- Coordinate secrets and addons required for klusterlet agents on spokes.
Notable APIs / CRDs (overview)
Typical objects you will encounter:
MultiClusterHub— hub installation status.ManagedCluster,ManagedClusterSet— membership grouping.Placement,PlacementDecision— dynamic cluster selection.GitOpsCluster— binds placement results to Argo CD managed clusters.
Install specifics live in the acm-operator and acm-hub-spoke component charts in components/.
Operator discovery
ACM controllers reconcile ManagedCluster, ManagedClusterSet, Placement, PlacementDecision, ManifestWork, and GitOpsCluster APIs directly against etcd — Deployments do not carry ACM annotations for fleet enrollment.
Imported spokes inherit ManagedCluster metadata (labels.annotations), ManagedClusterSet bindings, and feature-addon statuses driven by ManagedClusterAddon controllers — inspect hub namespaces open-cluster-management*, openshift-gitops, and cluster-scope managedcluster objects (oc get managedcluster) rather than hunting workload namespaces.
