GateForge

Product Features

What does GateForge solve?

Organizations running Red Hat 3scale API Management need a clear, automated path to Kubernetes-native API management via Red Hat Connectivity Link (Kuadrant). Manual migration is complex: mapping 3scale Products, Backends, Mapping Rules, Application Plans, and authentication configs to Gateway API HTTPRoutes, AuthPolicies, and RateLimitPolicies requires deep expertise in both ecosystems.

Compatibility Matrix

GateForge has been tested with the following Red Hat product versions:

Screenshots

Click any image to enlarge.

Click to enlarge

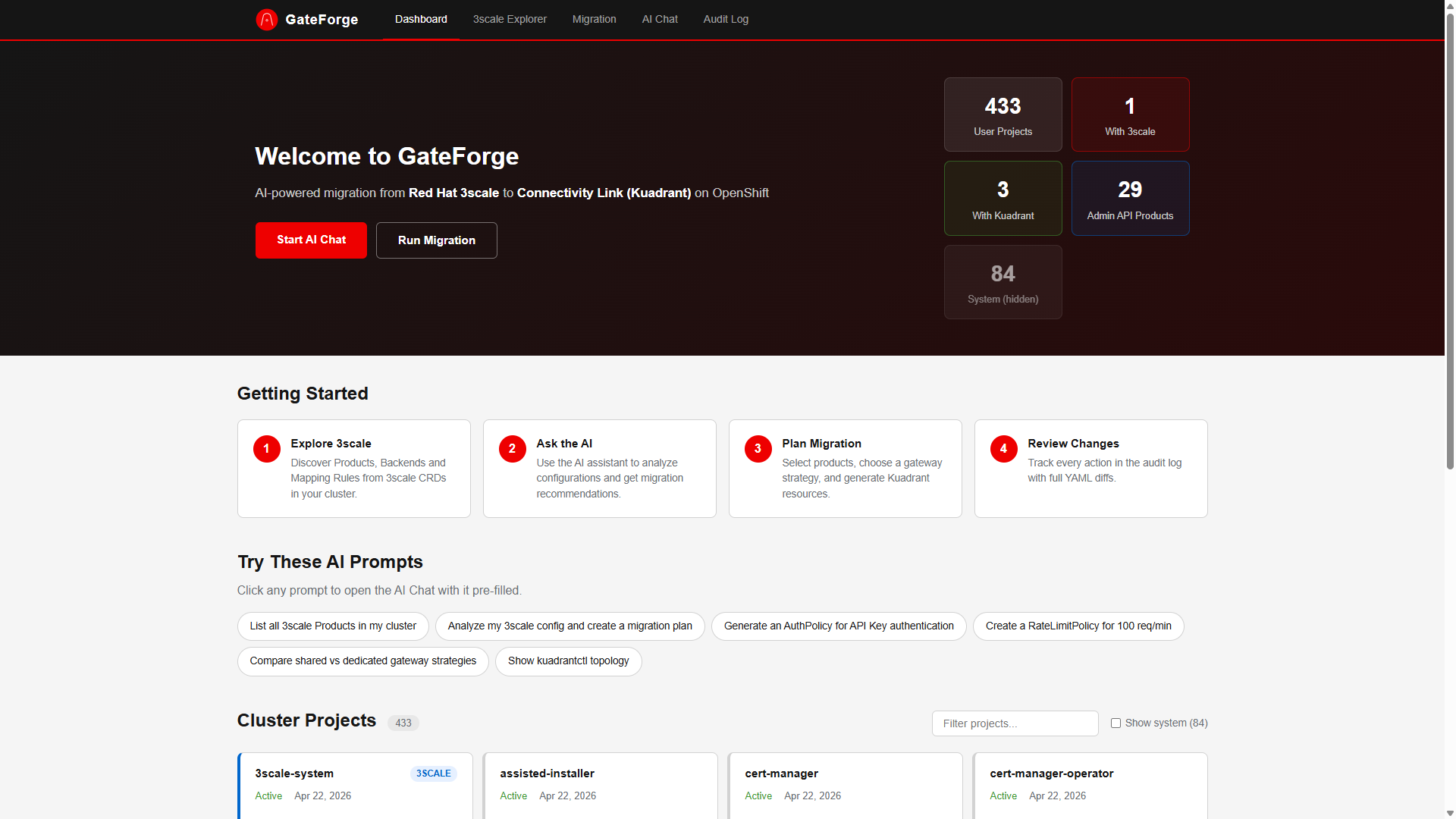

Dashboard — Cluster Overview

Click to enlarge

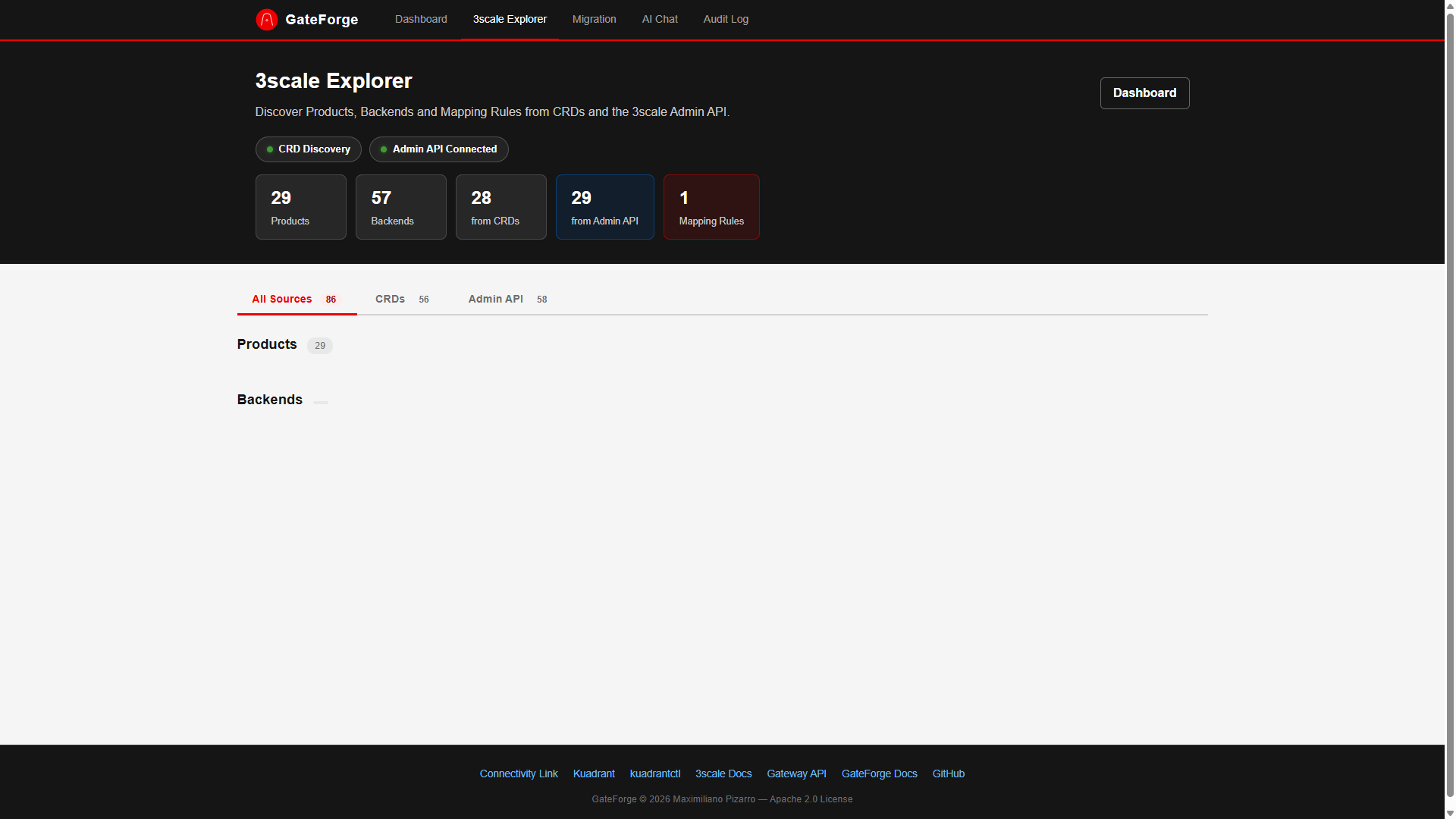

3scale Explorer — Products & Backends

Click to enlarge

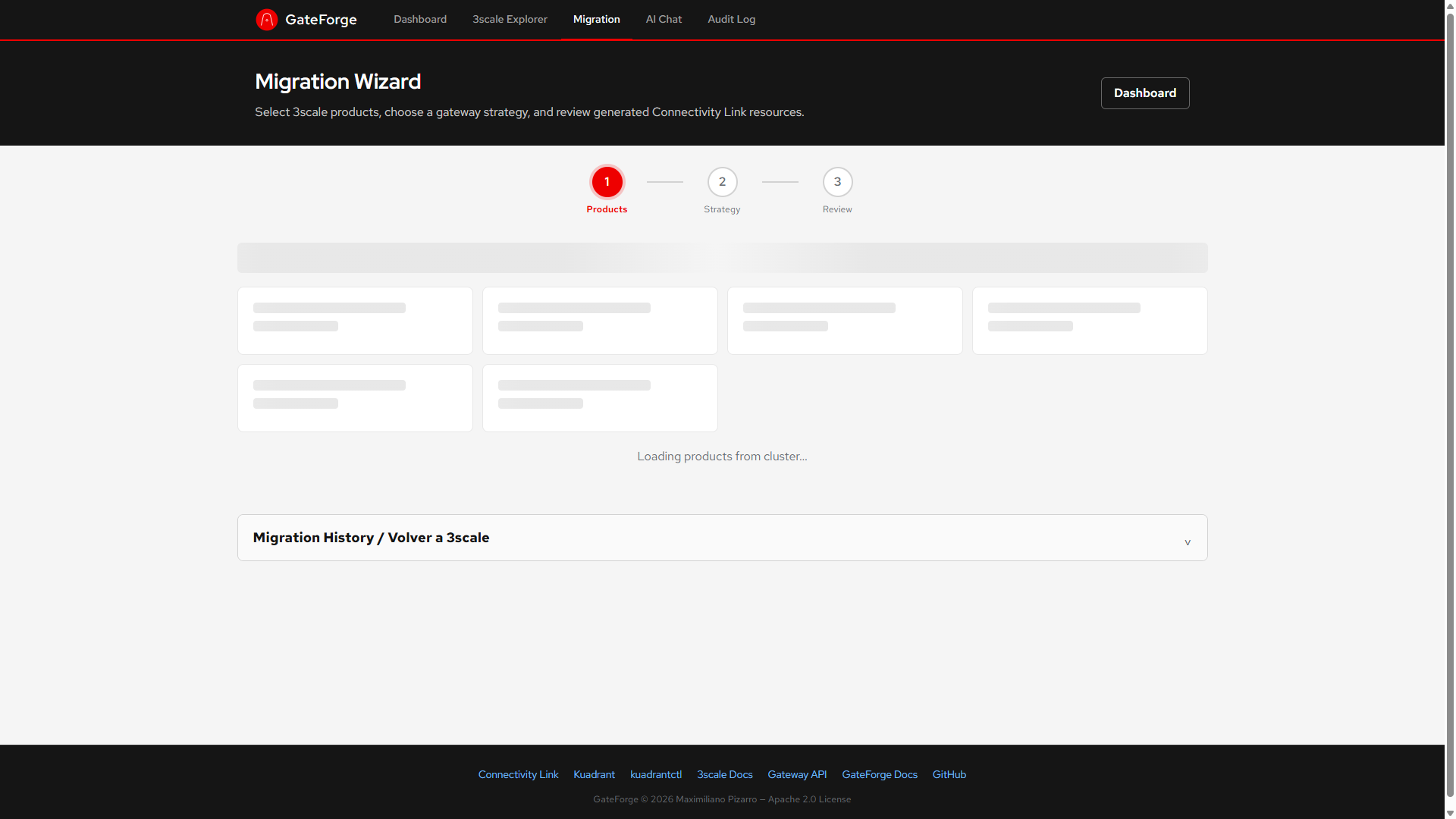

Migration Wizard — Product Selection

Click to enlarge

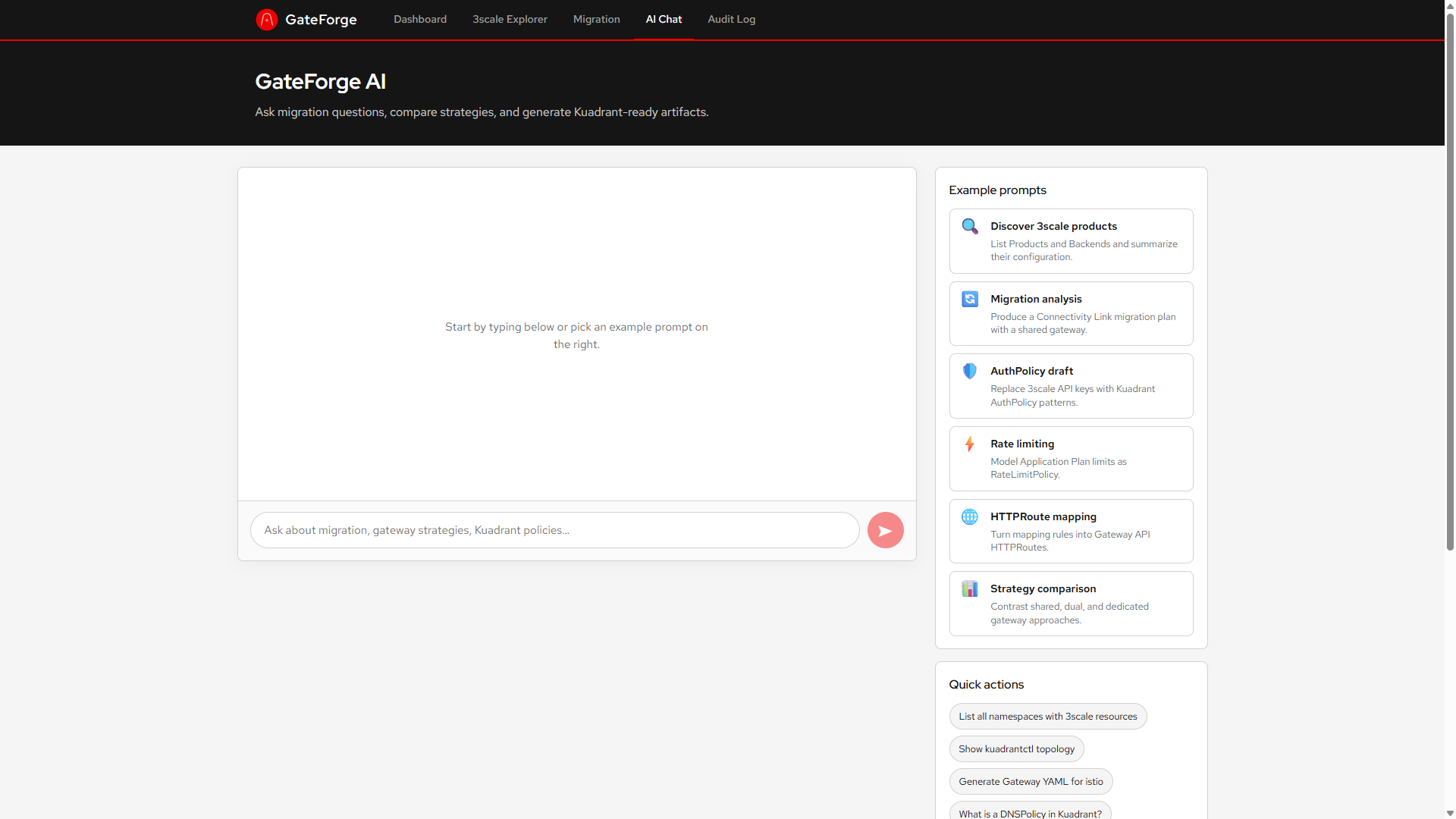

AI Chat — Migration Assistant

Click to enlarge

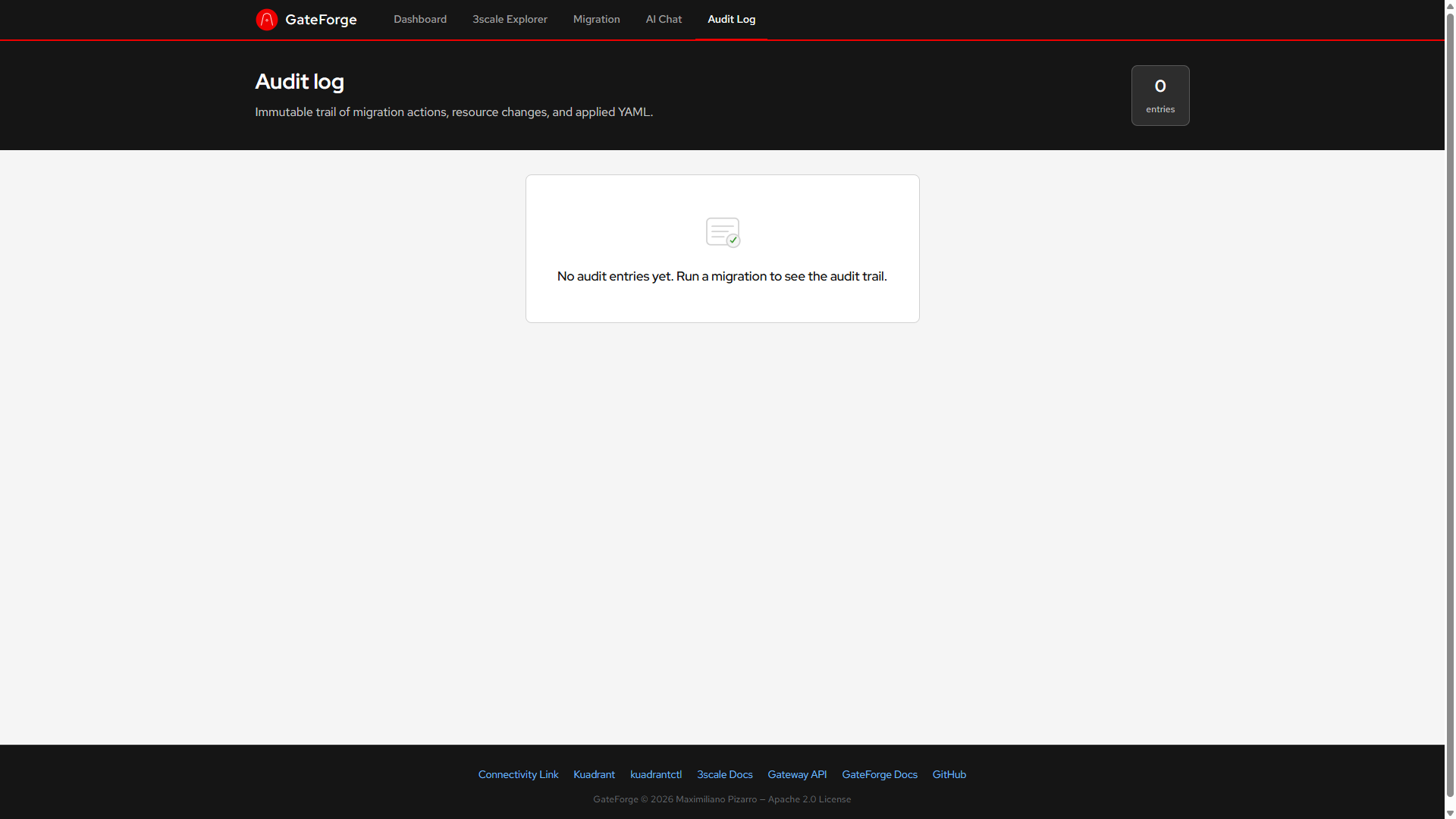

Audit Log — Migration Trail

Architecture

graph TB
  subgraph Hub["Hub Cluster (GateForge)"]
    GF["GateForge Backend
(Quarkus 3.x)"]
    FW["Flyway
Schema Migrations"]
    PG["PostgreSQL 15
Plans + Audit"]
    FE["Angular Frontend
(Nginx)"]
    AI["LangChain4j
AI Agent"]
  end

  subgraph Sources["3scale Sources"]
    S1["3scale Instance A
Admin API"]
    S2["3scale Instance B
Admin API"]
    S3["3scale CRDs
In-cluster"]
  end

  subgraph Targets["Target Clusters"]
    T1["Local Cluster"]
    T2["Staging Cluster"]
    T3["Production Cluster"]
  end

  subgraph Discovery["Cluster Discovery"]
    ARGO["ArgoCD Secrets"]
  end

  FE -->|REST API| GF
  GF --> FW
  FW --> PG
  GF --> AI
  GF -->|Admin API| S1
  GF -->|Admin API| S2
  GF -->|Fabric8 Client| S3
  GF -->|apply/revert| T1
  GF -->|apply/revert| T2
  GF -->|apply/revert| T3
  ARGO -->|auto-discover| GF


flowchart TD
  S1["3scale CRDs"] --> D1["Discover from CRDs"]
  S2["3scale Admin API (N sources)"] --> D2["Discover from Admin APIs"]
  D1 --> M["Merge + Deduplicate Products"]
  D2 --> M
  M --> GEN["Generate Gateway API Resources"]
  GEN --> GW["Gateway (shared/dual/dedicated)"]
  GEN --> HR["HTTPRoute per product"]
  GEN --> AP["AuthPolicy per product"]
  GEN --> RL["RateLimitPolicy per product"]
  GW --> PLAN["Migration Plan"]
  HR --> PLAN
  AP --> PLAN
  RL --> PLAN
  PLAN --> DB["Persist to PostgreSQL"]
  PLAN --> SELECT["Select Target Cluster"]
  SELECT --> APPLY["Apply to Target"]
  APPLY --> AUDIT["Record in Audit Log"]


sequenceDiagram
  participant U as User
  participant Chat as ChatComponent
  participant Agent as MigrationAgent
  participant LLM as LiteLLM (deepseek-r1)
  participant Tools as GateForgeTools
  participant Svc as Backend Services

  U->>Chat: Ask question
  Chat->>Agent: POST /api/chat
  Agent->>LLM: Chat completion + tool definitions
  LLM-->>Agent: tool_call: listThreeScaleProducts()
  Agent->>Tools: invoke listThreeScaleProducts
  Tools->>Svc: ThreeScaleService.listProducts()
  Svc-->>Tools: Product list (all sources)
  Tools-->>Agent: Formatted product data
  Agent->>LLM: Tool result + continue
  LLM-->>Agent: Final answer with real data
  Agent-->>Chat: Response
  Chat-->>U: Display answer


3scale to Connectivity Link Mapping

API Reference

Core Migration & Discovery

Phase 1 Multi-Source 3scale

Phase 2 Multi-Cluster Targets

Phase 3 Hub-Spoke & Federated

Getting Started

Using GateForge — AI Prompt Examples

GateForge includes an AI-powered chat assistant. Here are some example prompts:

Gateway Strategy Comparison

Helm Chart Values

Official Documentation

• Red Hat Connectivity Link

  Official Red Hat product documentation for Connectivity Link
• Kuadrant Documentation

  Upstream project docs for AuthPolicy, RateLimitPolicy, DNSPolicy, TLSPolicy
• kuadrantctl CLI

  Generate Gateway API and Kuadrant resources from OpenAPI 3.x specs
• Red Hat 3scale API Management

  Official documentation for 3scale, including Admin API reference
• 3scale Operator CRDs

  Product, Backend, APIManager custom resource definitions
• Kubernetes Gateway API

  Official Gateway API specification for HTTPRoute, Gateway resources
• Quarkus LangChain4j + MCP

  Using Model Context Protocol with Quarkus and LangChain4j
• Migration Guide (ONLU)

  Detailed phased migration strategy from 3scale to Connectivity Link
