Red Hat Chat - Deploy locally with Podman or on OpenShift

📋 TL;DR

📖 Overview

Red Hat Chat brings together the future of assistant AIs with the revolutionary technology of OpenAI’s ChatGPT, styled with the Red Hat Design System. This application integrates multiple AI models while maintaining Red Hat’s design standards and visual identity.

Key Features

Container Image

The application is available as a container image on Quay.io:

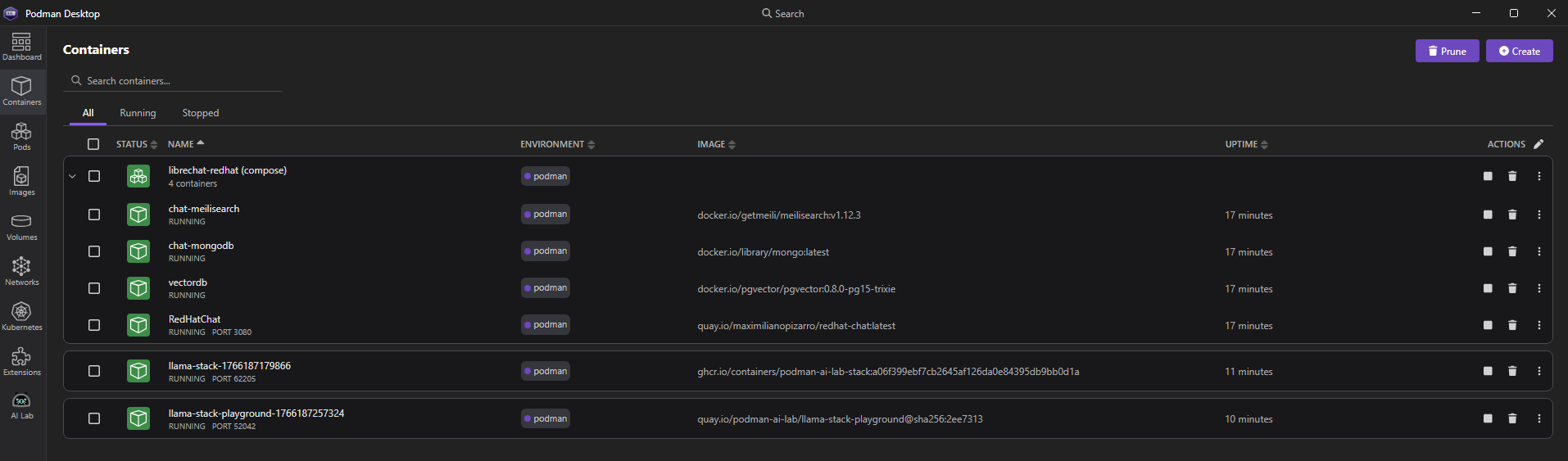

Red Hat Chat running with Podman

🚀 Running Locally with Podman

This section explains how to run Red Hat Chat locally using Podman and Podman Compose.

Prerequisites

  1. Install Podman:
    # RHEL/Fedora
    sudo dnf install podman

    # Ubuntu/Debian
    sudo apt-get install podman

    # Windows
    # Download Podman Desktop from https://podman-desktop.io/

  2. Install Podman Compose:
    # Using pip
    pip3 install podman-compose

    # Or use native podman compose (Podman 4.0+)
    # No additional installation needed

  3. Verify Installation:
    podman --version
    podman compose version  # or podman-compose --version


Quick Start

  1. Clone the repository:
    git clone https://github.com/maximilianoPizarro/LibreChat-RedHat.git
    cd LibreChat-RedHat

  2. Configure environment variables:
    # Copy example environment file
    cp env.example.podman .env

    # Edit .env and configure required variables:
    # - MEILI_MASTER_KEY (generate a secure key)
    # - JWT_SECRET (generate a secure key)
    # - JWT_REFRESH_SECRET (generate a secure key)

  3. Start services with Podman Compose:
    # Using native podman compose (recommended)
    podman compose -f podman-compose.yml up -d

    # Or using podman-compose
    podman-compose -f podman-compose.yml up -d

  4. Access the application:
    • Open your browser and navigate to: http://localhost:3080
    • The application should be running with all services (MongoDB, Meilisearch, etc.)

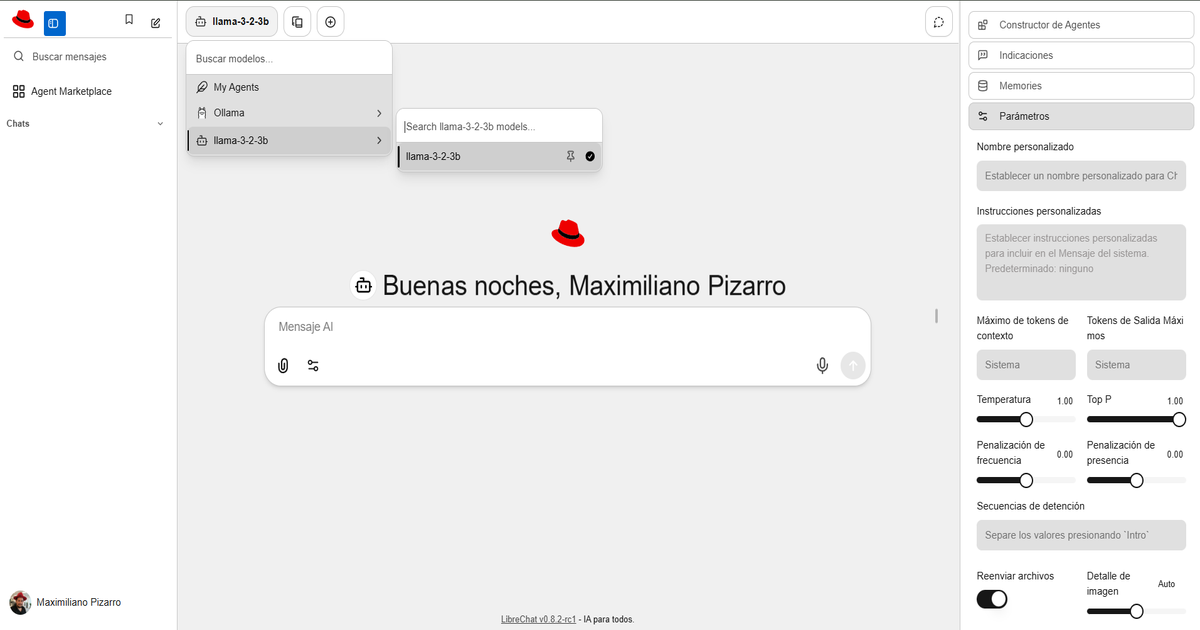

Red Hat Chat welcome screen

First Steps: Login and Registration

Once you access the application, you’ll see the welcome screen. Red Hat Chat supports multiple authentication methods:

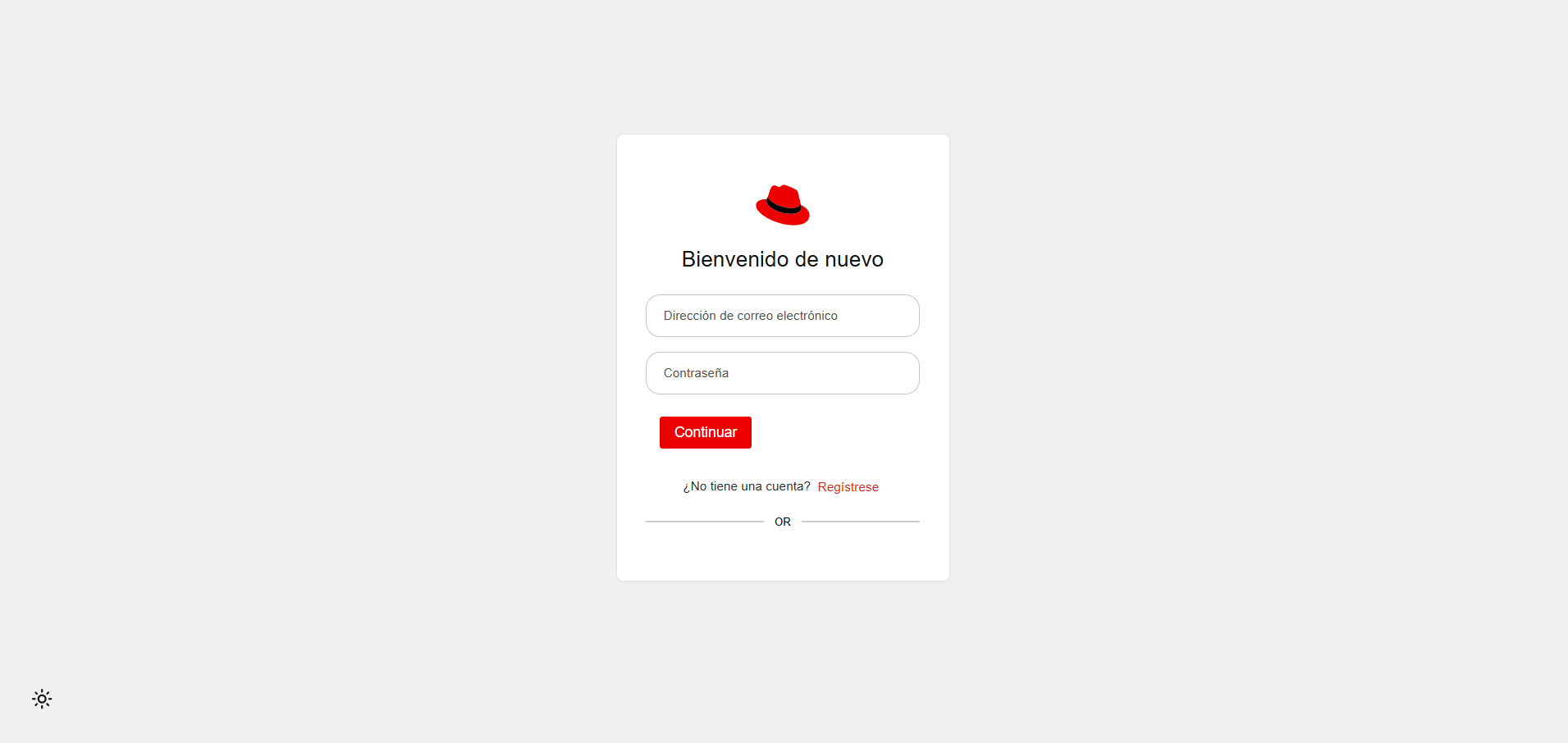

Red Hat Chat login screen

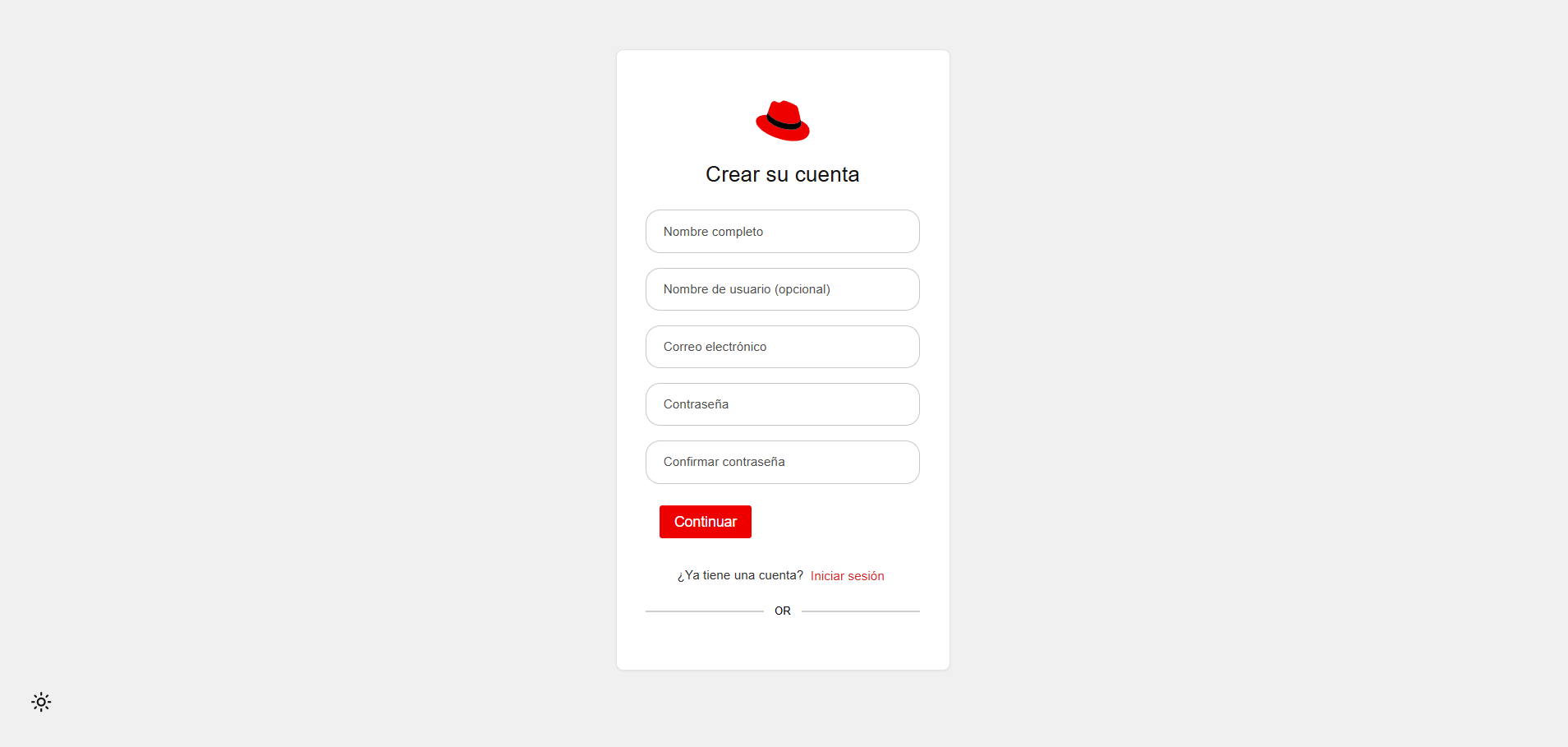

Red Hat Chat registration screen

Using Pre-built Container Image

Alternatively, you can use the pre-built image from Quay.io:

# Pull the latest image
podman pull quay.io/maximilianopizarro/redhat-chat:latest

# Run with podman-compose (recommended)
# Edit podman-compose.yml to use the image instead of building

Or run directly with Podman:

podman run -d \
  --name redhat-chat \
  -p 3080:3080 \
  -e MONGO_URI=mongodb://mongodb:27017/LibreChat \
  -e MEILI_HOST=http://meilisearch:7700 \
  quay.io/maximilianopizarro/redhat-chat:latest

Container Services

The podman-compose.yml includes the following services:

Managing Services

# Start services
podman compose -f podman-compose.yml up -d

# Stop services
podman compose -f podman-compose.yml down

# View logs
podman compose -f podman-compose.yml logs -f

# Rebuild and restart
podman compose -f podman-compose.yml up -d --build

Troubleshooting

Port already in use:

# Change PORT in .env file
PORT=3081

MongoDB connection issues:

# Check MongoDB container
podman ps | grep mongodb
podman logs chat-mongodb

Podman socket connection:

# On Linux, enable podman socket
systemctl --user enable --now podman.socket
export DOCKER_HOST=unix://$XDG_RUNTIME_DIR/podman/podman.sock
Red Hat Chat with Llama stack

☸️ Deploying on OpenShift from Catalog

This section explains how to deploy Red Hat Chat on OpenShift using the container image from Quay.io through the OpenShift catalog.

💡 Tip: The Helm chart for Red Hat Chat (LibreChat) is pre-installed in many OpenShift clusters and can be found in the OpenShift Developer Catalog under “Helm Charts”. For comprehensive Helm chart documentation, advanced configuration, and deployment strategies, visit Red Hat Chat Helm Chart Documentation.

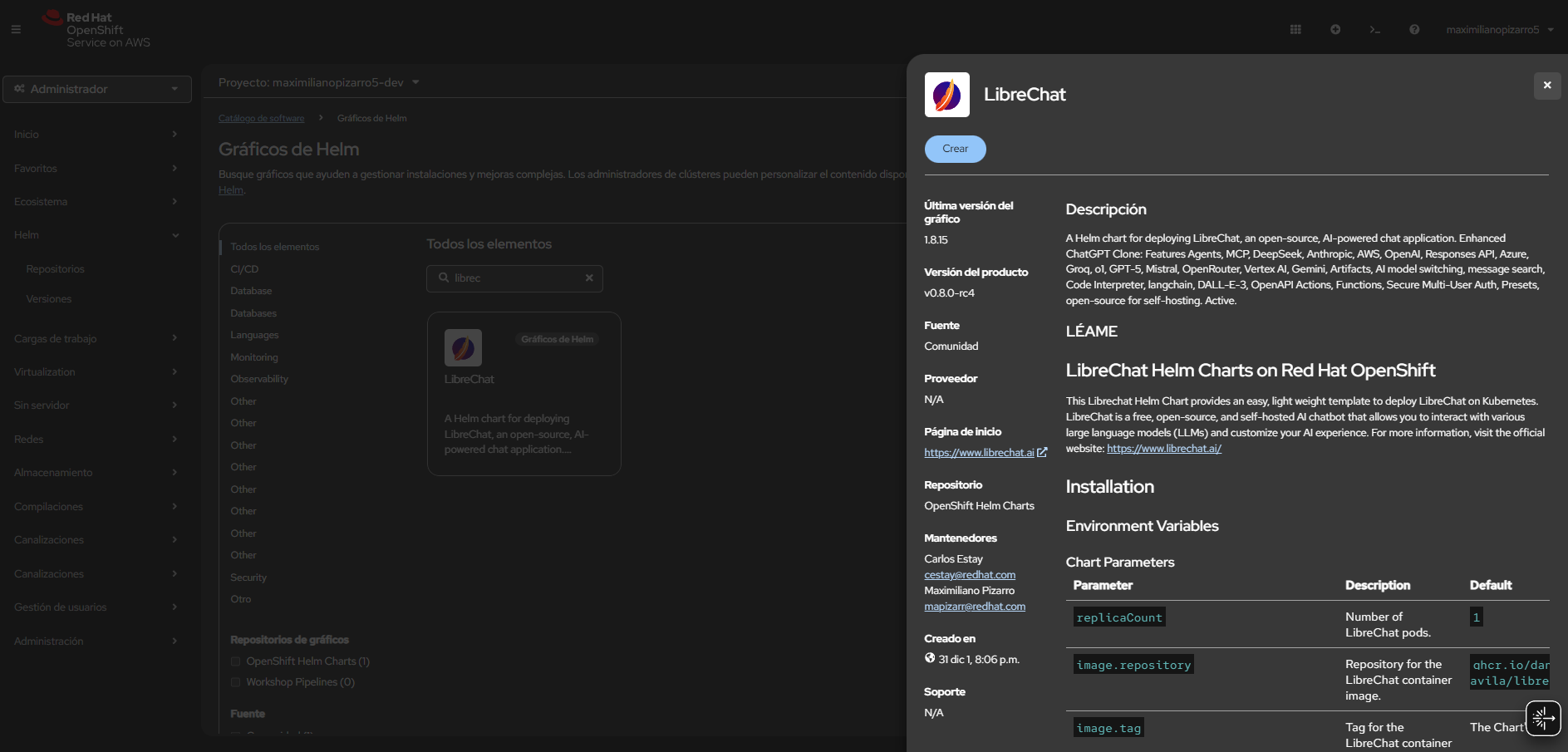

Red Hat Chat Helm Chart available in OpenShift Developer Catalog

The Helm chart for Red Hat Chat (LibreChat) is available in the OpenShift Developer Catalog under "Helm Charts"

Prerequisites

Step 1: Access the Developer Catalog

  1. Log in to your OpenShift web console
  2. Navigate to Developer perspective (top menu)
  3. Click on +Add in the left sidebar
  4. Select Container Images from the catalog

Screenshot: OpenShift Developer Catalog - Navigate to +Add → Container Images

In the OpenShift web console, go to Developer perspective → +Add → Container Images

Step 2: Search for the Container Image

  1. In the Image name field, enter:
    quay.io/maximilianopizarro/redhat-chat:latest

  2. Click Search or press Enter
  3. Select the image from the results

Screenshot: Search results showing quay.io/maximilianopizarro/redhat-chat:latest

The search will display the Red Hat Chat image from Quay.io

Step 3: Configure the Deployment

  1. Application Name: Enter redhat-chat (or your preferred name)
  2. Name: This will be auto-filled, you can modify if needed
  3. Resource Type: Select Deployment
  4. Namespace: Choose or create a namespace for the deployment

Step 4: Configure Container Settings

  1. Container Port: Set to 3080 (default application port)
  2. Environment Variables: Add required environment variables:
    • MONGO_URI: Connection string to MongoDB
    • MEILI_HOST: Meilisearch host URL
    • JWT_SECRET: Generate a secure JWT secret
    • JWT_REFRESH_SECRET: Generate a secure refresh secret
    • MEILI_MASTER_KEY: Generate a secure Meilisearch master key

    Tip: You can create a Secret first and reference it:

    oc create secret generic redhat-chat-secrets \
      --from-literal=jwt-secret=$(openssl rand -hex 32) \
      --from-literal=jwt-refresh-secret=$(openssl rand -hex 32) \
      --from-literal=meili-master-key=$(openssl rand -hex 16) \
      -n your-namespace

  3. Resource Limits: Configure CPU and memory limits as needed
  4. Storage: Add persistent volumes if needed for data storage

Step 5: Create Route

  1. Check Create a route to the application
  2. Configure route settings:
    • Route name: redhat-chat (or your preferred name)
    • Target port: 3080
    • TLS: Select Edge termination (recommended)

Step 6: Deploy

  1. Click Create to start the deployment
  2. Wait for the deployment to complete
  3. Access the application using the route URL provided

Screenshot: Red Hat Chat deployment status in OpenShift

Once deployed, you'll see the deployment status and route URL in the OpenShift console

After successful deployment, you can access Red Hat Chat through the OpenShift route. The application will display the same welcome screen and login interface as shown in the local deployment:

Red Hat Chat welcome screen on OpenShift

Method 2: Using OpenShift CLI (oc)

Step 1: Login to OpenShift

oc login --server=<your-openshift-server-url>

Step 2: Create Namespace

oc create namespace redhat-chat
oc project redhat-chat

Step 3: Create Secrets

# Generate secure keys
JWT_SECRET=$(openssl rand -hex 32)
JWT_REFRESH_SECRET=$(openssl rand -hex 32)
MEILI_MASTER_KEY=$(openssl rand -hex 16)

# Create secret
oc create secret generic redhat-chat-secrets \
  --from-literal=jwt-secret=$JWT_SECRET \
  --from-literal=jwt-refresh-secret=$JWT_REFRESH_SECRET \
  --from-literal=meili-master-key=$MEILI_MASTER_KEY

Step 4: Create Deployment

oc new-app \
  --name=redhat-chat \
  --image=quay.io/maximilianopizarro/redhat-chat:latest \
  --env=MONGO_URI=mongodb://mongodb:27017/LibreChat \
  --env=MEILI_HOST=http://meilisearch:7700 \
  --env-from=secret/redhat-chat-secrets

Step 5: Expose Service

# Create route
oc expose service redhat-chat

# Or create route with custom settings
cat <<EOF | oc apply -f -
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  name: redhat-chat
  namespace: redhat-chat
spec:
  to:
    kind: Service
    name: redhat-chat
  port:
    targetPort: 3080
  tls:
    termination: edge
    insecureEdgeTerminationPolicy: Redirect
EOF

Step 6: Get Route URL

oc get route redhat-chat -o jsonpath='{.spec.host}'

Method 3: Using Helm Chart

The project includes a Helm chart for easier deployment. Note: The Helm chart for Red Hat Chat (LibreChat) is pre-installed in many OpenShift clusters and can be found in the OpenShift Developer Catalog under “Helm Charts”.

Using Pre-installed Helm Chart in OpenShift

  1. Access the Developer Catalog:
    • Log in to your OpenShift web console
    • Navigate to Developer perspective
    • Click on +AddHelm Charts
    • Search for “librechat” or “redhat-chat”
Red Hat Chat Helm Chart in OpenShift Developer Catalog

The Helm chart for Red Hat Chat (LibreChat) is available in the OpenShift Developer Catalog

  1. Install from Catalog:
    • Select the Helm chart from the catalog
    • Configure the values (image repository, environment variables, etc.)
    • Click Install to deploy

Using Helm CLI

If you prefer using the Helm CLI or the chart is not available in your cluster’s catalog:

# Add the chart repository or use local chart
helm install redhat-chat ./helm/librechat \
  --namespace redhat-chat \
  --create-namespace \
  --set image.repository=quay.io/maximilianopizarro/redhat-chat \
  --set image.tag=latest

Additional Helm Chart Documentation

For comprehensive Helm chart documentation, advanced configuration options, environment variables, OpenID Connect setup, and deployment strategies, visit:

📚 Red Hat Chat Helm Chart Documentation

The documentation includes:

Deploying Dependencies

Red Hat Chat requires MongoDB and Meilisearch. You can deploy them using:

Option 1: Using OpenShift Catalog

  1. Deploy MongoDB from the catalog
  2. Deploy Meilisearch from the catalog
  3. Update environment variables in Red Hat Chat deployment to point to these services

Option 2: Using Helm

The Helm chart includes optional dependencies:

helm install redhat-chat ./helm/librechat \
  --namespace redhat-chat \
  --create-namespace \
  --set mongodb.enabled=true \
  --set meilisearch.enabled=true \
  --set image.repository=quay.io/maximilianopizarro/redhat-chat \
  --set image.tag=latest

Verifying Deployment

# Check deployment status
oc get deployment redhat-chat -n redhat-chat

# Check pods
oc get pods -n redhat-chat -l app=redhat-chat

# View logs
oc logs -f deployment/redhat-chat -n redhat-chat

# Check route
oc get route redhat-chat -n redhat-chat

Updating the Application

To update to a newer version:

# Update image tag in deployment
oc set image deployment/redhat-chat \
  redhat-chat=quay.io/maximilianopizarro/redhat-chat:latest \
  -n redhat-chat

# Or using the web console:
# 1. Go to Deployment → redhat-chat
# 2. Click Actions → Edit deployment
# 3. Update the image tag
# 4. Save

Troubleshooting

Image pull errors:

# Check if image is accessible
podman pull quay.io/maximilianopizarro/redhat-chat:latest

# Check image pull secrets
oc get secrets -n redhat-chat | grep registry

Deployment not starting:

# Check deployment events
oc describe deployment redhat-chat -n redhat-chat

# Check pod events
oc describe pod <pod-name> -n redhat-chat

# Check logs
oc logs <pod-name> -n redhat-chat

Route not accessible:

# Check route status
oc get route redhat-chat -n redhat-chat -o yaml

# Test service directly
oc get svc redhat-chat -n redhat-chat
oc port-forward svc/redhat-chat 3080:3080 -n redhat-chat

🎨 Red Hat Design System Integration

This application uses the Red Hat Design System (RHDS) for consistent UI components and styling. The frontend is built with:

The design system is loaded via CDN (jsDelivr) for development, and can be configured to use the Red Hat CDN for production deployments on *.redhat.com domains.


📦 Container Image Details

Image Repository

Available Tags

Check the Quay.io repository for all available tags:

Image Architecture

Pulling the Image

# Pull latest
podman pull quay.io/maximilianopizarro/redhat-chat:latest

# Pull specific version
podman pull quay.io/maximilianopizarro/redhat-chat:v0.8.2-rc1

# Verify image
podman images | grep redhat-chat

🔧 Configuration

librechat.yaml Configuration

Red Hat Chat uses a librechat.yaml configuration file to customize AI endpoints, file handling, rate limits, and more. Below are examples for configuring Llama Stack endpoints.

Basic Configuration Structure

The librechat.yaml file supports multiple configuration sections:

Example 1: Local Ollama with Llama Stack

This example configures Red Hat Chat to use a local Ollama instance running Llama models:

version: 1.0.3
cache: true

fileConfig:
  endpoints:
    assistants:
      fileLimit: 5
      fileSizeLimit: 10  # Maximum size for an individual file in MB
      totalSizeLimit: 50  # Maximum total size for all files in a single request in MB
      supportedMimeTypes:
        - "image/.*"
        - "application/pdf"
    openAI:
      disabled: true  # Disables file uploading to the OpenAI endpoint
    default:
      totalSizeLimit: 20
  serverFileSizeLimit: 100  # Global server file size limit in MB
  avatarSizeLimit: 2  # Limit for user avatar image size in MB

rateLimits:
  fileUploads:
    ipMax: 100
    ipWindowInMinutes: 60  # Rate limit window for file uploads per IP
    userMax: 50
    userWindowInMinutes: 60  # Rate limit window for file uploads per user

endpoints:
  assistants:
    disableBuilder: false  # Disable Assistants Builder Interface by setting to `true`
    pollIntervalMs: 750  # Polling interval for checking assistant updates
    timeoutMs: 180000  # Timeout for assistant operations
    fileLimit: 5
    fileSizeLimit: 10   # Maximum size for an individual file in MB
    totalSizeLimit: 50  # Maximum total size for all files in a single request in MB
    supportedMimeTypes:
      - "image/.*"
      - "application/pdf"
  custom:
    # Local Ollama instance with Llama2
    - name: "Ollama"
      apiKey: "IiI="  # Base64 encoded empty string (Ollama doesn't require auth)
      baseURL: "http://librechat-ollama:11434/v1"  # Adjust if Ollama is on a different host
      models:
        default: ["llama2", "llama3", "llama3.2:3b-instruct"]  # Available models
        fetch: true  # Fetch available models from Ollama API
      titleConvo: true
      titleModel: "llama2"
      summarize: false
      summaryModel: "llama2"

Example 2: Remote Llama Model via Red Hat AI Services

This example shows how to connect to a remote Llama model hosted on Red Hat AI Services:

version: 1.0.3
cache: true

fileConfig:
  endpoints:
    assistants:
      fileLimit: 5
      fileSizeLimit: 10
      totalSizeLimit: 50
      supportedMimeTypes:
        - "image/.*"
        - "application/pdf"
    openAI:
      disabled: true
    default:
      totalSizeLimit: 20
  serverFileSizeLimit: 100
  avatarSizeLimit: 2

rateLimits:
  fileUploads:
    ipMax: 100
    ipWindowInMinutes: 60
    userMax: 50
    userWindowInMinutes: 60

endpoints:
  assistants:
    disableBuilder: false
    pollIntervalMs: 750
    timeoutMs: 180000
    fileLimit: 5
    fileSizeLimit: 10
    totalSizeLimit: 50
    supportedMimeTypes:
      - "image/.*"
      - "application/pdf"
  custom:
    # Remote Llama 3.2 3B model via Red Hat AI Services
    - name: "llama-3-2-3b"
      apiKey: "your-api-key-here"  # Replace with your actual API key
      baseURL: "https://llama-3-2-3b-maas-apicast-production.apps.prod.rhoai.rh-aiservices-bu.com:443/v1"
      models:
        default: ["llama-3-2-3b"]
        fetch: false  # Don't fetch, use explicit model list
      titleConvo: true
      titleModel: "llama-3-2-3b"
      summarize: false
      summaryModel: "llama-3-2-3b"

Example 3: Multiple Llama Models (Local + Remote)

This example demonstrates configuring both local Ollama and remote Llama models:

version: 1.0.3
cache: true

fileConfig:
  endpoints:
    assistants:
      fileLimit: 5
      fileSizeLimit: 10
      totalSizeLimit: 50
      supportedMimeTypes:
        - "image/.*"
        - "application/pdf"
    openAI:
      disabled: true
    default:
      totalSizeLimit: 20
  serverFileSizeLimit: 100
  avatarSizeLimit: 2

rateLimits:
  fileUploads:
    ipMax: 100
    ipWindowInMinutes: 60
    userMax: 50
    userWindowInMinutes: 60

endpoints:
  assistants:
    disableBuilder: false
    pollIntervalMs: 750
    timeoutMs: 180000
    fileLimit: 5
    fileSizeLimit: 10
    totalSizeLimit: 50
    supportedMimeTypes:
      - "image/.*"
      - "application/pdf"
  custom:
    # Local Ollama - Lightweight models for development
    - name: "Ollama Local"
      apiKey: "IiI="
      baseURL: "http://localhost:11434/v1"  # Local Ollama instance
      models:
        default: ["llama3.2:3b-instruct", "llama3.2:1b-instruct"]  # Lightweight models
        fetch: true
      titleConvo: true
      titleModel: "llama3.2:3b-instruct"
      summarize: false
      summaryModel: "llama3.2:3b-instruct"

    # Remote Llama - Production models
    - name: "Llama 3.2 3B Production"
      apiKey: "${LLAMA_API_KEY}"  # Use environment variable
      baseURL: "https://llama-3-2-3b-maas-apicast-production.apps.prod.rhoai.rh-aiservices-bu.com:443/v1"
      models:
        default: ["llama-3-2-3b"]
      titleConvo: true
      titleModel: "llama-3-2-3b"
      summarize: false
      summaryModel: "llama-3-2-3b"

    # Another remote model option
    - name: "Llama 3 70B"
      apiKey: "${LLAMA_70B_API_KEY}"
      baseURL: "https://your-llama-70b-endpoint.com/v1"
      models:
        default: ["llama-3-70b-instruct"]
      titleConvo: true
      titleModel: "llama-3-70b-instruct"
      summarize: true
      summaryModel: "llama-3-70b-instruct"

Configuration Notes

For Podman/Container Deployments:

  1. Mount the configuration file: Ensure librechat.yaml is mounted as a volume in your container: ```yaml volumes:
    • type: bind source: ./librechat.yaml target: /app/librechat.yaml read_only: true ```
  2. Environment Variables: You can use environment variables in the YAML file:
    apiKey: "${LLAMA_API_KEY}"


    Then set the variable in your .env file or container environment.

  3. Network Configuration: For local Ollama, use the container service name:
    baseURL: "http://librechat-ollama:11434/v1"  # Service name in podman-compose


For OpenShift Deployments:

  1. ConfigMap: Create a ConfigMap from your librechat.yaml:
    oc create configmap librechat-config --from-file=librechat.yaml -n redhat-chat

  2. Mount ConfigMap: Mount it in your deployment: ```yaml volumeMounts:
    • name: config mountPath: /app/librechat.yaml subPath: librechat.yaml volumes:
    • name: config configMap: name: librechat-config ```
  3. Secrets for API Keys: Store API keys in Secrets:
    oc create secret generic llama-api-keys \
      --from-literal=llama-api-key=your-key-here \
      -n redhat-chat


Available Llama Models

Common Llama models you can use with Red Hat Chat:

Troubleshooting Configuration

Model not appearing in UI:

API Key issues:

Connection errors:

Environment Variables

Key environment variables for Red Hat Chat:

Required:

Optional:

See env.example.podman for a complete list of configuration options.

Generating Secure Keys

# Generate JWT secrets (32+ characters)
openssl rand -hex 32

# Generate Meilisearch master key (16+ characters)
openssl rand -hex 16

📚 Additional Resources

Red Hat Resources:

Original LibreChat Resources:

Container Registry:


🆘 Support

For issues, questions, or contributions:


📝 License

This project is open source. Please refer to the LICENSE file in the repository for details.


Red Hat Chat - Powered by LibreChat with Red Hat Design System

Built with ❤️ using Red Hat certified container images
